Experience The Best In Network Connectivity With FTTH Fiber Optic Drop Cable For Indoor And Outdoor
Contact Person : JQ CABLE
Phone Number : +8618122383351
whatsapp : +8618122383351
| Minimum Order Quantity : | 1KM | Packaging Details : | wooden package or cartoon box |
|---|---|---|---|
| Delivery Time : | 5-8 work days | Payment Terms : | L/C, T/T, Western Union |
| Supply Ability : | 30KM Per day |
| Place of Origin: | Guangzhou,China | Brand Name: | JQ/OEM |
|---|---|---|---|
| Certification: | ISO9001 | Model Number: | GJYXCH |
|
Detail Information |
|||
| Fiber Type: | G657A1/G657A2/G652D | Fiber Count: | 1/2/4 Core |
|---|---|---|---|
| Jacket Color: | Black,White,as Request | Warranty: | 5years |
| Cable Diameter: | 2.0*5.0mm | Strength Member: | 0.45 Mm Steel Wire |
| Jacket Material: | LSZH/PVC | Messenger Wire: | 1.0mm Steel Wire |
| Application: | FTTH FTTB FTTX Network | Attenuation(max): | ≤0.36dB /KM(1310nm) |
| Highlight: | 2.0*5.0mm FTTH Fiber Optic Drop Cable,G657A1 outdoor drop cable,2.0*5.0mm outdoor drop cable |
||
Product Description

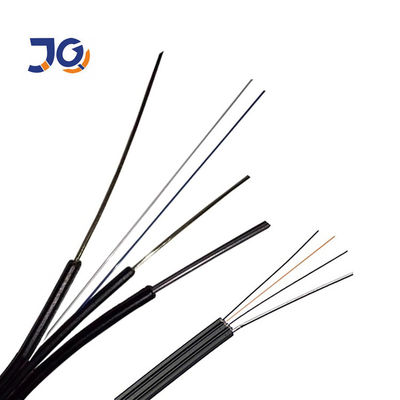

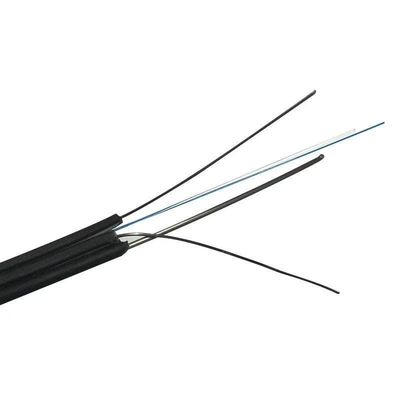

1/2/4 Core Self-Supporting G657A1 Outdoor Ftth Fiber Optic Drop Cable
Features
1, High tensile of the diameter 1.0mm steel wire meet the requirement of self-supporting and reducing the installation cost.
2, Two parallel FRP/ steel wire strength members ensure good performance of crush resistance to protect the fiber
3, Novel flute design, easily strip and splice, simplify the installation and maintenance
4, Low smoke zero halogen and flame retardant sheath
5, (2.0±0.2)x(5.0±0.2)mm
6, Compliant with Telcordia GR-326-CORE specification
Product detail
Technical parameters
| Product Model |
Fiber Count (core) |
CableDiameter(mm) | CableWeight (kg/km) |
Tensile Strength Long/Short Term(N) |
Crush Resistance Long/Short Term(N) |
Bending Radius Static/ Dynamic |
| GJXH | 1 | (2.1+0.1)*(3.1+0.1) | 10 | 1000/2200 | 200/1000 | 15/30 |
| GJXH | 2 | (2.1+0.1)x(3.1+0.1) | 10 | 1000/2200 | 200/1000 | 15/30 |
| GJXH | 4 | (2.3+0.1)*(3.3+0.1) | 12 | 1000/2200 | 200/1000 | |15/30 |
| GJXFH | 1 | (2.1+0.1)x<(3.1+0.1) | 9 | 800/1800 | 200/1000 | 15/30 |
| GJXFH | 2 | (2.1+0.1)x(3.1+0.1) | 9 | 800/1800 | 200/1000 | 15/30 |
| GJXFH | 4 | (2.1+0.1)x(3.1+0.1) | 11 | 800/1800 | 200/1000 | 15/30 |
| GJYXCH | 1 | (2.1+0.1)*(5.1+0.1) | 21 | 1500/2500 | 500/1300 | 15/30 |
| GJYXCH | 2 | (2.1+0.1)*(5.1+0.1) | 21 | 1500/2500 | 500/1300 | |15/30 |
| GJYXCH | 4 | (2.1+0.1)x(5.1+0.1) | 21 | 1500/2500 | 500/1300 | 15/30 |
| GJYXFCH | 1 | (2.1+0.1)*(5.1+0.1) | 20 | 1500/2500 | 500/1300 | 15/30 |
| GJYXFCH | 2 | (2.1+0.1)x(5.1+0.1) | 20 | 1500/2500 | 500/1300 | 15/30 |
| GJYXFCH | 4 | (2.1+0.1)x(5.1+0.1) | 20 | 1500/2500 | 500/1300 | 15/30 |
Package
Nominal shipping length of the cable will be 1~3 km. Other length is also available if required by buyer.
Each length of the cable will be wound on a separate strong wooden.one drum in a carton box
