12 Core Pigtails SC/UPC SC/APC Single-Mode 12 Color Fiber Optical Pigtail
Contact Person : JQ CABLE
Phone Number : +8618122383351
whatsapp : +8618122383351
| Minimum Order Quantity : | 10pcs | Packaging Details : | package carton |
|---|---|---|---|
| Delivery Time : | 2-4day | Payment Terms : | Western Union, MoneyGram, T/T, L/C |
| Supply Ability : | 10000pcs per 2 day |
| Place of Origin: | CHINA | Brand Name: | jiqian |
|---|---|---|---|
| Certification: | ISO | Model Number: | Fiber Optic Distribution Box |
|
Detail Information |
|||
| Size:: | 380x245x130 | Material:: | PP+Glass Fiber |
|---|---|---|---|
| Model Number:: | Optical Splitter Box | Net Weight:: | 4.5--5 |
| Highlight: | 96FO Fiber Optic Splice Closure,PP Glass Fiber Fiber Optic Splice Closure,96FO outdoor fiber splice enclosure |
||
Product Description

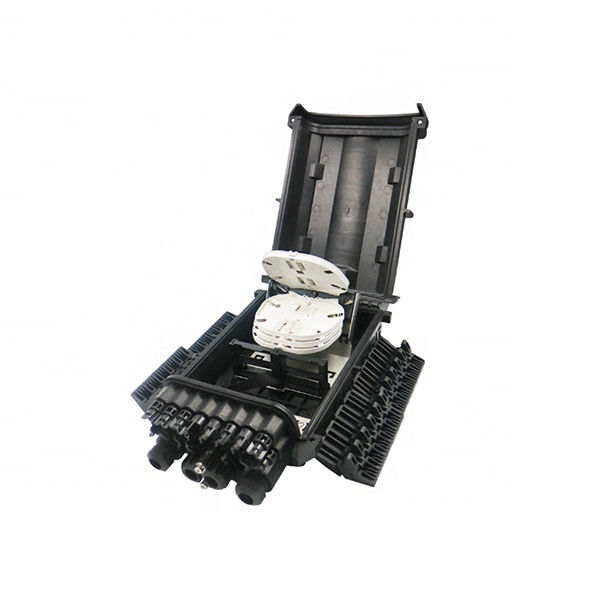

TGJS303 Fiber Optical Splice Box
Closure provide space and protection for fiber optic cable splicing and joint. They can be mounted aerial, buried, or for underground applications. They are designed to be waterproof and dust proof. They can be used in temperature ranging from -40°C to 85°C, can accommodate 70 to 106 kpa pressure and the case are usually made of high tensile construction plastic.
|
TGJS303 Fiber Optical Splice Box
|
|
|
Material
|
PP+Glass Fiber
|
|
Size
|
380*245*130mm
|
|
Cable Ports
|
1pc un-cut cable port, 2pcs output cable ports, 16pcs drop cable ports
|
|
Max Capacity
|
96FO
|
|
Splice Tray
|
2 pcs 100%PC Material
|
|
Weight
|
4.5~5KG
|
|
Accessories
|
Protecting Sleeves, labelling paper, insulation tape, abrasive paper, wall-mount kits, sealing tape, nylon tie, earthing wire, plastic wrench
|
|
Sealing Way
|
Silicon Rubbersealing Ring
|
|
Installation Way
|
Aerial, wall or pole-Mounting
|
