4 Core Self Supporting G657A1 Aerial Drop Cable GJYXCH

Contact Now

4 Core Self Supporting G657A1 Aerial Drop Cable GJYXCH

Minimum Order Quantity :	1KM	Packaging Details :	wooden package or cartoon box
Delivery Time :	5-8 work days	Payment Terms :	L/C, T/T, Western Union
Supply Ability :	100KM Per day

Place of Origin:	Guangzhou,China	Brand Name:	JQ/OEM
Certification:	ISO9001	Model Number:	GJYXCH/GJYXFCH

Detail Information
Fiber Count:	1/2/4 Core	Jacket Color:	Black,White
Jacket Material:	LSZH/PVC	Attenuation(max):	≤0.36dB /KM(1310nm)
Strength Member:	Steel Messenger Wire/FRP	Fiber:	YOFC,or As Request
Weight:	20kgs/km	Length:	1km Or 2km
Fiber Type:	G657A1/A2/G652D	Application:	FTTH,Network
Highlight:	G657A1 Aerial Drop Cable , GJYXCH Aerial Drop Cable , Self Supporting Aerial Drop Cable

Product Description

Fiber To The Home 4 Core Self Supporting G657A1 Aerial Drop Cable GJYXCH/GJYXFCH

Fiber To The Home 4 Core Self Supporting G657A1 Aerial Drop Cable

Description

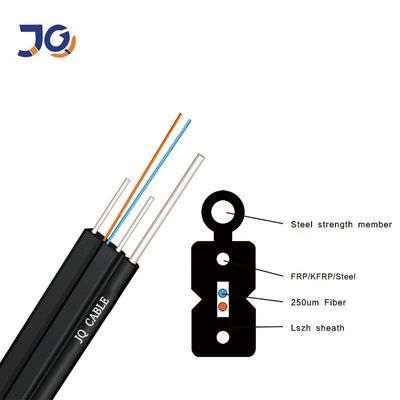

The structure is1-4 colored fibers colored fiber combined with two FRP (or steel wires),which can protect the fiber inside by providing sufficient tensile strength and good resistance to lateral crushing.Drop cable is designed for last-one-mile in the FTTx network, enhancing the accessibility to the fiber and maximizes the installation work ability.High tensile of the diameter 1.0mm steel wire meet the requirement of self-supporting and reducing the installation cost.Two parallel FRP/ steel wire strength members ensure good performance of crush resistance to protect the fiber.Novel flute design, easily strip and splice, simplify the installation and maintenance.

Application
Adopted to outdoor distribution.
As pigtail of communication equipment
Suitable for communication equipment.
Can be installed conveniently and perated simply

Features

G657A1 FTTH fiber optical cable
Self-support (LSZH) ,PE,PVC outer sheath drop cable

Outdoor ftth Self-supporting drop cable(GJYXCH/GJYXFCH)

FRP/KFRP or steel wire strength element

Low smoke zero halogen and flame retardant sheath
Outer diameter(2.0±0.2)x(5.0±0.2)mm
Compliant with Telcordia GR-326-CORE specification

4 Core Self Supporting G657A1 Aerial Drop Cable GJYXCH 0

Product detail

4 Core Self Supporting G657A1 Aerial Drop Cable GJYXCH 2

Fiber Parameters

Items

Specification

G.657A1

Mode Field Diameter

1310nm

9.0±0.4

1550nm

10.1±0.5

Cladding Diameter

124.8±0.7

Cladding Non-Circularity

Core-Cladding Concentricity Error

Coating Diameter

245±5

Coating Non-Circularity

Cladding-Coating Concentricity Error

≤12.0

Cable Cutoff Wavelength

入cc≤1260

Attenuation(max.)

1310nm

dB/km

≤0.35

1550nm

dB/km

≤0.21

Macro-Bending Loss

1turnx10mm

radius@1550nm

≤0.75

1turnx10mm

radius@1625nm

Technical parameters

Product Model	Fiber Count (core)	Cable Diameter(mm)	Cable Weight (kg/km)	Tensile Strength Long/Short Term(N)	Crush Resistance Long/ShortTerm(N)	Bending Radius Static/Dynamic
GJXH	1	(2.1+0.1)*(3.1+0.1)	10	1000/2200	200/1000	15/30
GJXH	2	(2.1+0.1)x(3.1+0.1)	10	1000/2200	200/1000	15/30
GJXH	4	(2.3+0.1)*(3.3+0.1)	12	1000/2200	200/1000	\|15/30
GJXFH	1	(2.1+0.1)x<(3.1+0.1)	9	800/1800	200/1000	15/30
GJXFH	2	(2.1+0.1)x(3.1+0.1)	9	800/1800	200/1000	15/30
GJXFH	4	(2.1+0.1)x(3.1+0.1)	11	800/1800	200/1000	15/30
GJYXCH	1	(2.1+0.1)*(5.1+0.1)	21	1500/2500	500/1300	15/30
GJYXCH	2	(2.1+0.1)*(5.1+0.1)	21	1500/2500	500/1300	\|15/30
GJYXCH	4	(2.1+0.1)x(5.1+0.1)	21	1500/2500	500/1300	15/30
GJYXFCH	1	(2.1+0.1)*(5.1+0.1)	20	1500/2500	500/1300	15/30
GJYXFCH	2	(2.1+0.1)x(5.1+0.1)	20	1500/2500	500/1300	15/30
GJYXFCH	4	(2.1+0.1)x(5.1+0.1)	20	1500/2500	500/1300	15/30

Package

Nominal shipping length of the cable will be 1 or 2 km. Other length is also available if required by buyer.
Each length of the cable will be wound on a separate strong wooden.one drum in a carton box

4 Core Self Supporting G657A1 Aerial Drop Cable GJYXCH 3

4 Core Self Supporting G657A1 Aerial Drop Cable GJYXCH 4

4 Core Self Supporting G657A1 Aerial Drop Cable GJYXCH 5

4 Core Self Supporting G657A1 Aerial Drop Cable GJYXCH 6

FAQ

1.Are you trading company or manufacturer?

We are the manufacturer with 10 years' experience ,we are specialized in research,development and production

for fiber optic cable,drop cable and path cord ect. Our factory is in Guangzhou city,welcome to visit us!

2.About the quality?

We will delivery before tested every fibers when finished production.

After price confirmation, you can require for free samples to check our quality.

3.Can you accept small order?

Yes, small order is available. We support new project of our customers, as we know business is always from small order.

4.What is your delivery time?

Usually about 3-7days working days,it mainly depend on order quantity.

But pls be assured that we will arrange your goods asap after your payment .

5.Can you accept the OEM service?

Yes, we welcome the OEM service. We can print your logo on the product. Any idea from you is available.
