12 Core Pigtails SC/UPC SC/APC Single-Mode 12 Color Fiber Optical Pigtail
Contact Person : JQ CABLE
Phone Number : +8618122383351
whatsapp : +8618122383351
| Minimum Order Quantity : | 10000PSC | Packaging Details : | cartoon box |
|---|---|---|---|
| Delivery Time : | 3-5 days,it depends on order quantity | Payment Terms : | L/C, T/T, Western Union,Alipay |
| Supply Ability : | 999999pcs per day |
| Place of Origin: | China | Brand Name: | JQ/OEM |
|---|---|---|---|
| Certification: | ISO 9001,ROHS CE-EMC FCC SDOC | Model Number: | Fiber Heat Shrink tube |
|
Detail Information |
|||
| Place Of Origin: | Guangzhou,China | Manufactuer: | Yes |
|---|---|---|---|
| Jacket: | PE PVC | Length: | 60mm 40mm 50mm |
| Oem: | Available | Color: | White |
| Type: | Heat Shrink Fiber Splice Protection Sleeves | Package: | Cartoon Box |
| Use: | FTTX/FTTH | ||
| Highlight: | Optical Fiber Heat Shrinkable Splice,60mm Fiber Protection Sleeves,Shrinkable Fiber Protection Sleeves |
||
Product Description

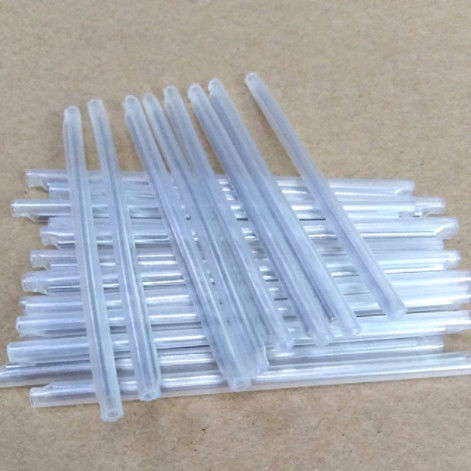

60mm Optical Fiber Heat Shrinkable Splice Protection Sleeves
Shrinkable sleeve is applied to the optical fiber closure to fix and protect the optical fiber when splicing.
The sleeve can be divided into two types(single and mass) according to the function. The single type is used for the single-fiber, and the mass type is used for the ribbon fiber. It is different in the reinforcement between two types. The single one realizes the reinforcement by the stainless steel needles, the later one via the ceramic reinforcement member to realize the function.Mass means there are several cores for the fiber. So the mass sleeve includes 4cores,6cores,8cores,12cores(for types).
| Model | Fiber optic heat shrinking sleeve/ tube |
| Type | Single fiber, Ribbon fiber |
| Material | Heat shrink tube, fusion tube, 304 steel rod |
| Length | 40, 45, 50, 60mm |
| Steel rod diameter | 1.5, 1.2, 1.0mm |
| Minimum fully recovery temperature | 120 °C |
| Operating temperature | -45 °C to + 100 °C |
| Standard Color | Clear |

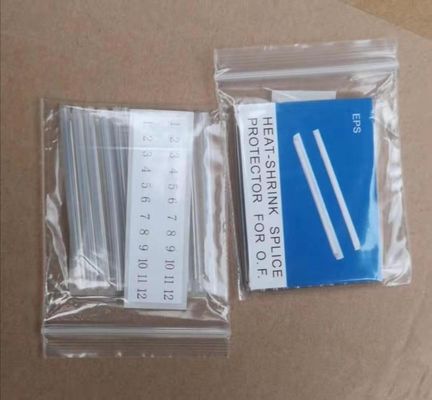

Package
100pcs in one bag,10000pcs in one cartoon or according customer's requirments.
