48 core GYTA33 Steel Wire direct burial Armored underwater submarine fiber optic cable
48 core GYTA33 Steel Wire direct burial Armored underwater submarine fiber optic cable 48 core GYTA33 Steel Wire direct burial Armored underwater submarine fiber optic cable 48 core GYTA33 Steel Wire direct burial Armored underwater submarine fiber optic cable 48 core GYTA33 Steel Wire direct burial Armored underwater submarine fiber optic cable 48 core GYTA33 Steel Wire direct burial Armored underwater submarine fiber optic cable
Contact Now

48 core GYTA33 Steel Wire direct burial Armored underwater submarine fiber optic cable

Minimum Order Quantity : 1kilometer Packaging Details : Wooden Drum
Delivery Time : 3-5days Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability : 8000 kilometers per month
Place of Origin: Guangdong,China Brand Name: JQ/OEM
Certification: CE/ISO9001 Model Number: GYTA33

Detail Information
Cable Type: GYTA33 Place Of Origin:: Guangzhou,China
Fiber Count: 2-288cores Fiber Type: G652D Single Mode Or As Your Request
Fiber Brand: YOFC Number Of Conductors: ≥ 10
Strength Member: Steel Structure: Loose Tube Stranded
Armoured: Double Armored Double Jacket Material Of Jacket: PE Or As Your Request
Cable Structure: Multi-Loose Tube Aluminum Tape Armor Application: Submarine Underwater Undersea
Working Temperature: -40~+60℃
Highlight:

48 core submarine fiber optic cable

,

Armored submarine fiber optic cable

,

GYTA33 submarine fiber optic cable

Product Description

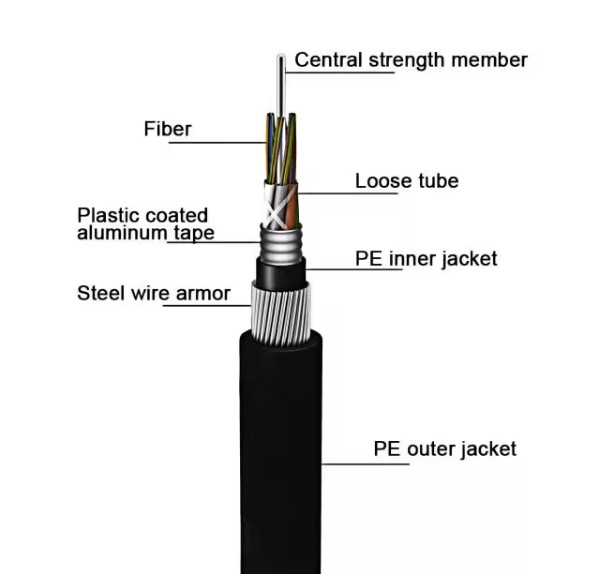

The structure of the GYTA33 optic cable is to sleeve the optical fiber into the PBT loose tube and fill with the thixotropic compound. The central reinforcement of the cable core is a steel wire (a large core number structure optical cable needs to be extruded with a layer of PE cushion), and the loose tube is twisted around the central reinforcement by SZ stranding. The gaps in the cable core are filled with water-blocking compounds. The outer sheath is armored with a single thin round steel wire and extruded with a layer of polyethylene outer sheath.
48 core GYTA33 Steel Wire direct burial Armored underwater submarine fiber optic cable 0
The GYTA33 optic cables are especially applicable for the installation in the freshwater and shallow water area. It doesn’t need the junction, and can be used for the wiring under the water with shorter communication distance .
1.Excellent mechanical and temperature performance.
2.The steel wires armoring make the cable to have the bigger tensile strength.
3.AL tape longitudinal cover cable core as moisture barrier.
4.Cable total cross-section water or salt water blocking.
5.Outer sheath protects cable from ultraviolet radiation.
6.Optional flame retardance outer sheath.
7.Max installed and under 250m water depth.
Product Specifications:
48 core GYTA33 Steel Wire direct burial Armored underwater submarine fiber optic cable 1
Package:
24 Core G652D GYTA33 Steel Armored Stranded Loose Tube Optical Fiber Cable
3km/Wooden Drum,Drum dimension 110*55*50cm,G.W 360.0kg.
48 core GYTA33 Steel Wire direct burial Armored underwater submarine fiber optic cable 2
FAQ:
Q1: Are you a manufacturer or trading company?
A1: We are a manufacturer.

Q2: Where is your factory located? How can I visit there?
A2: Our factory are located in Shenzhen city,Guangdong Province.You can fly to Shenzhen or Guangzhou international airport. And tell us your flight No. We will arrange to pick you up.

Q3: May I buy samples from you?
A3: Yes! You are welcome to place sample order to test our superior quality and services.

Q4: What is your Warranty?
A4: All the products will have 12 months Warranty

Q5: What payment method do you accept?
A5: LC(Bank Transferable),T/T(Bank transfer), Western Union, Money Gram, Paypal, etc.

Q6: Can you put my brand name (logo) on these products?
A6: Yes! The professional OEM services will be welcomed to us. Our factory accepts to make the logo free for bulk orders
