12 Core Pigtails SC/UPC SC/APC Single-Mode 12 Color Fiber Optical Pigtail
Contact Person : JQ CABLE
Phone Number : +8618122383351
whatsapp : +8618122383351
| Minimum Order Quantity : | 50 pieces | Packaging Details : | Carton box |
|---|---|---|---|
| Payment Terms : | L/C, T/T, Western Union,Alipay | Supply Ability : | 50000 per month |
| Place of Origin: | Guangzhou,China | Brand Name: | JQ/OEM |
|---|---|---|---|
| Certification: | ISO9001 ROHS CE-EMC FCC SDOC | Model Number: | Fiber optic PLC splitter |
|
Detail Information |
|||
| Place Of Origin: | Guangzhou,China | Certification: | ISO9001 ROHS CE-EMC FCC SDOC |
|---|---|---|---|
| Connector Type: | SC APC SC UPC | Length: | 1/2/3 Or Customized |
| Product Name: | PLC Splitter | Type: | 1x8 |
| Fiber Type: | Custom | Application: | FTTH FTTB FTTX Network |
| Highlight: | 1x4 fiber optical splitter,1x8 fiber optical splitter,1x16 fiber optical splitter |
||
Product Description
Production Description
1.FBT splitter is a type of optical power management device that is fabricated using Fused Biconical Tape technology.
2.It features small size, high reliability, cheap cost and good channel-to-channel uniformity, and is widely used
in PON networks to realize optical signal power splitting.
3.Rollball provides whole series of 1xN and 2xN splitter products that are tailored for specific applications. All
products meet GR-1209-CORE and GR-1221-CORE
4.Rollball offers both tree and star type inline couplers/splitters. They provide a reliable solution to
split/combine signals. The splitting ratio ranges from 1x2 to 1x4 ports for tree couplers, and from 2x2
up to 4x4 for star couplers. Available in single, dual, and tripple wavelength windows(1310/1490/1550nm).
Types

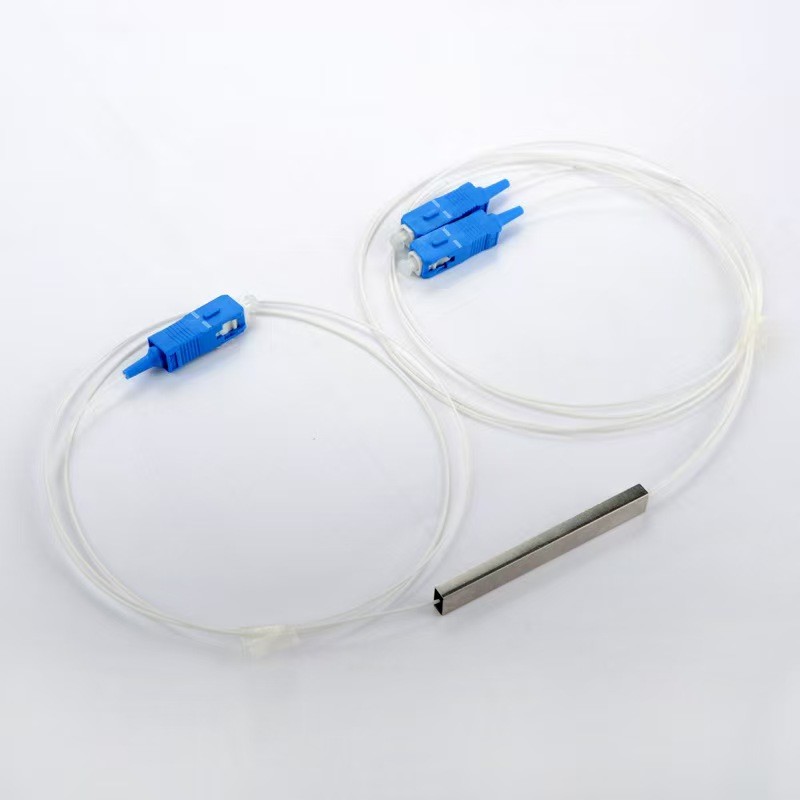

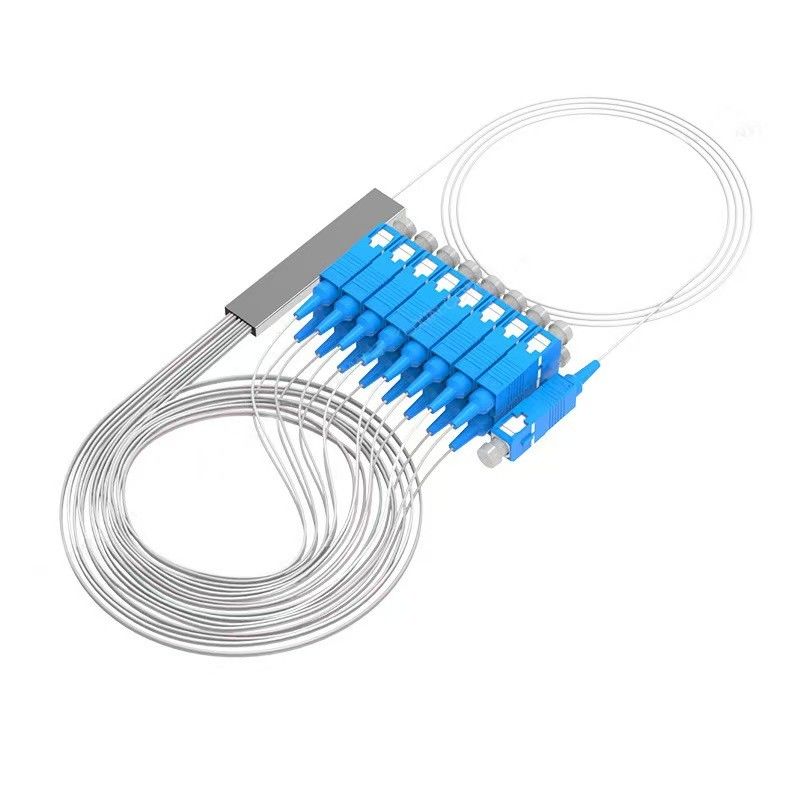

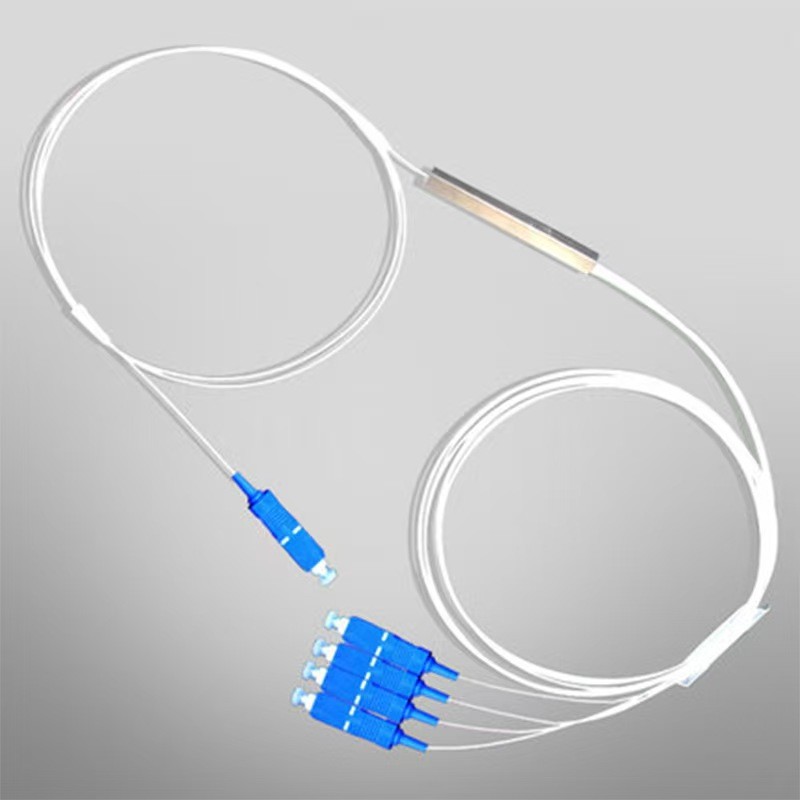

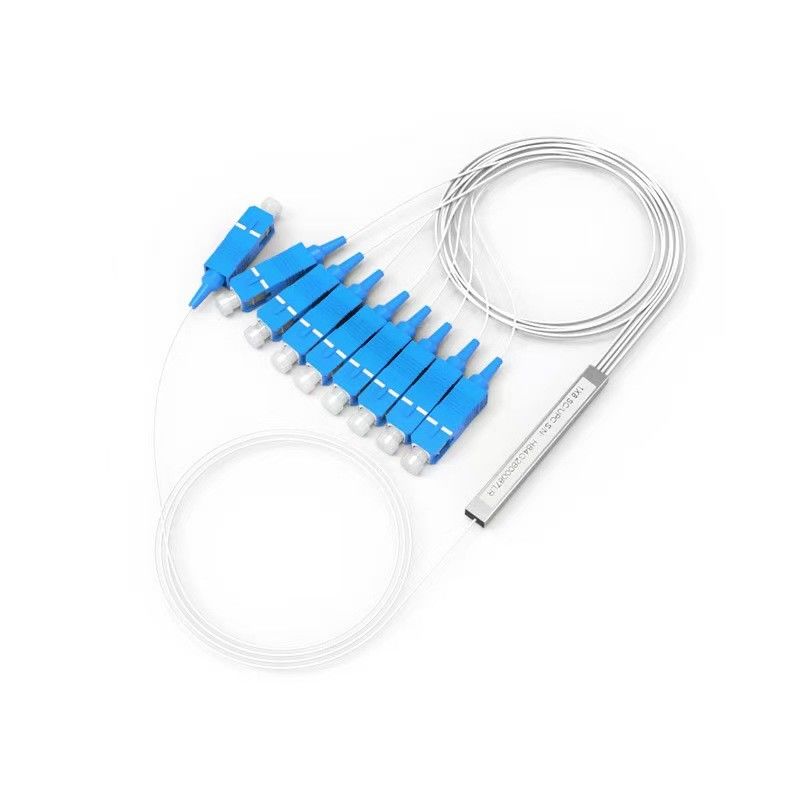

Basic type PLC splitter
SFF type PLC splitter
900um Fan-out Type PLC Splitter
Cassette type PLC splitter Module
Rack type PLC splitter Module
Tray assembly PLC splitter Module
Flat Quick-Connect Termination Type PLC Splitter Module

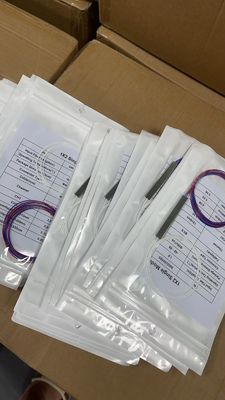

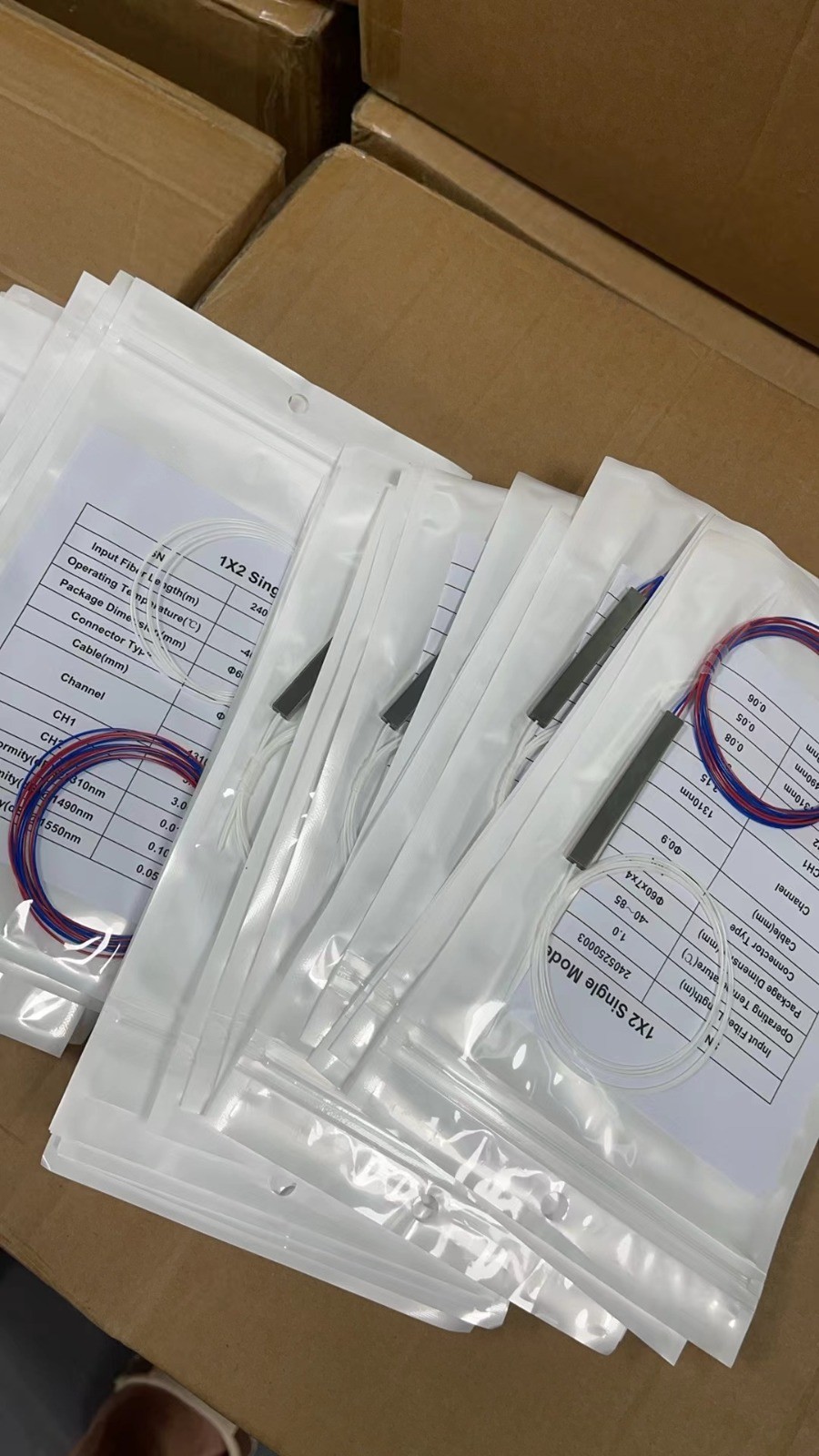

Package detail
Testing
Application
1. FTTX networks
2. PON networks
3. CATV links
4. Data Communication
|
1xN PLC Splitter Specification
|
|||||||
|
Operating Wavelength(nm)
|
1260~1650
|
||||||
|
Fiber Type
|
G657A1 or as customers' order
|
||||||
|
Port Configuration
|
1x2
|
1x4
|
1x8
|
1x16
|
1x32
|
1x64
|
1x128
|
|
Insertion Loss (dB)
|
3.8/4.0
|
7.1/7.3
|
10.2/10.5
|
13.5/13.7
|
16.5/16.9
|
20.5/21.0
|
23.8/24.2
|
|
Loss Uniformity (dB)
|
0.4
|
0.6
|
0.8
|
1.2
|
1.5
|
2.0
|
2.5
|
|
Polarization Dependent Loss(dB)
|
0.2
|
0.2
|
0.2
|
0.25
|
0.3
|
0.35
|
0.4
|
|
Wavelength Dependent Loss(dB)
|
0.3
|
0.3
|
0.3
|
0.5
|
0.5
|
0.5
|
0.5
|
|
Temperature Dependent Loss (-40~85 ) (dB)
|
0.4
|
0.4
|
0.4
|
0.5
|
0.5
|
0.5
|
0.5
|
|
Return Loss (dB)
|
55/50
|
||||||
|
Operating Temperature
|
-40~+85
|
||||||
|
Directivity (dB)
|
≥ 55
|
||||||
|
Storage Temperature
|
-40~+85
|
||||||
Feature
1. Low Insertion Loss
2. Low Polarization Dependent Loss
3. Wide Operation Wavelength
4. Wide Operation Temperature
5. High Stability and Reliability
6. Telcordia GR-1209 and GR-1221 Compliance
7. YD/T 2000.1-2009 Compliance (TLC Product Certificate Compliance)
