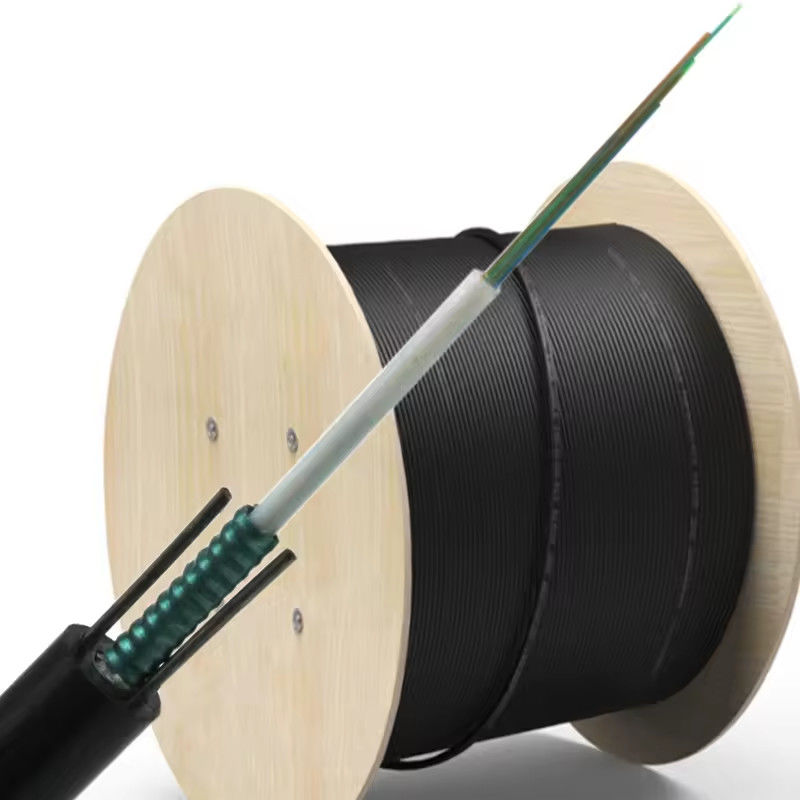

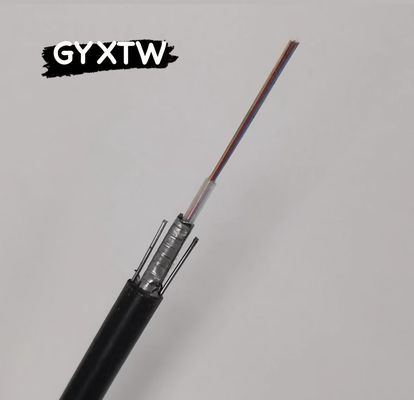

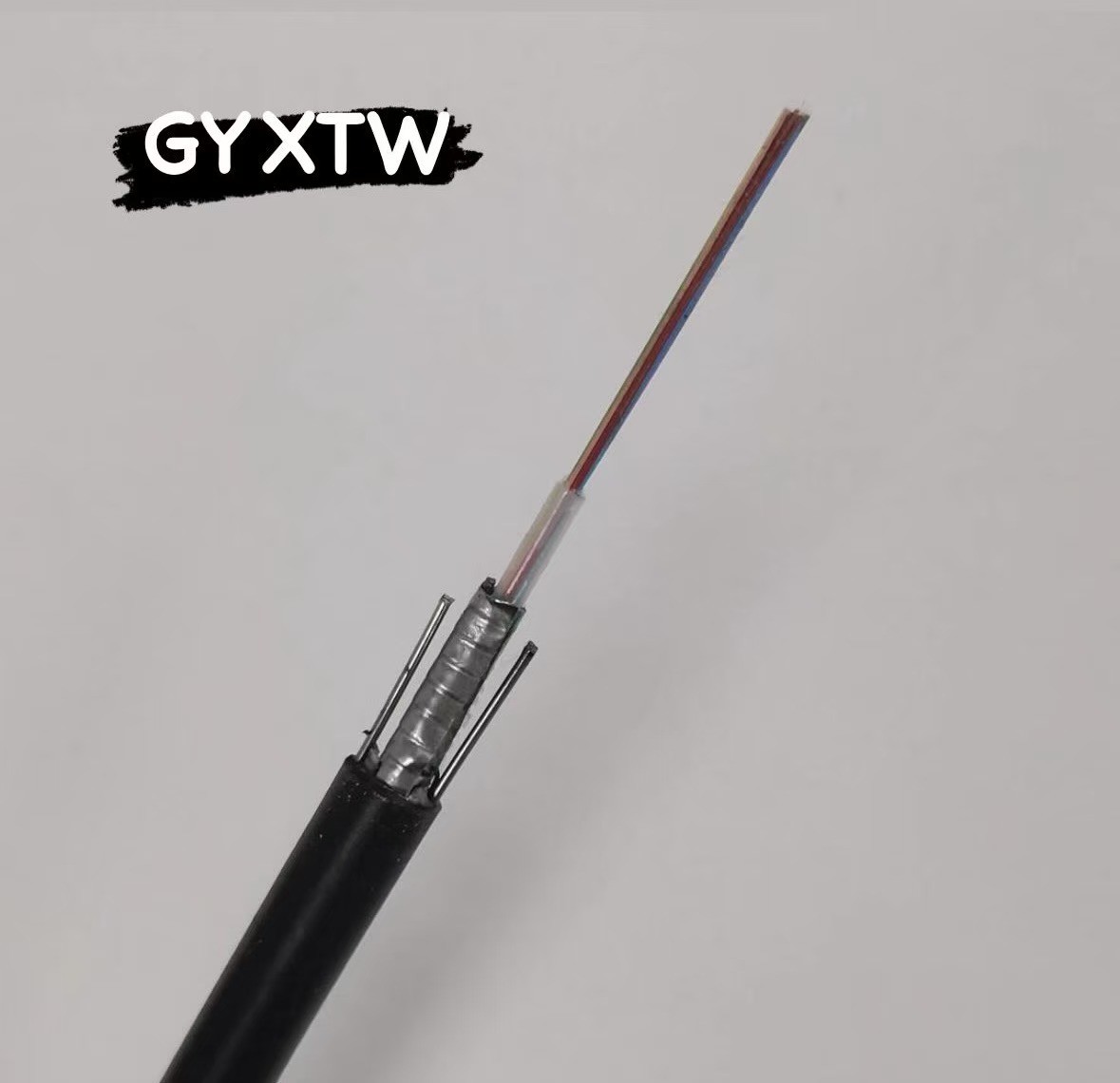

Aerial Fiber Optic Cable GYXTW 4-24 Core Single Mode G652D 8.0mm Cable OD For Overhead Laying With 1MM Steel Wire Strength
Contact Person : JQ CABLE
Phone Number : +8618122383351
whatsapp : +8618122383351
| Minimum Order Quantity : | 1km | Packaging Details : | 1/2/3/4/5 km in one wooden drum |
|---|---|---|---|
| Delivery Time : | 3-5dyas | Payment Terms : | L/C, T/T, Western Union |
| Supply Ability : | 10000 Per day |
| Place of Origin: | Guangzhou China | Brand Name: | JQ/OEM |
|---|---|---|---|
| Certification: | ISO9001 | Model Number: | GYXTW |
|
Detail Information |
|||

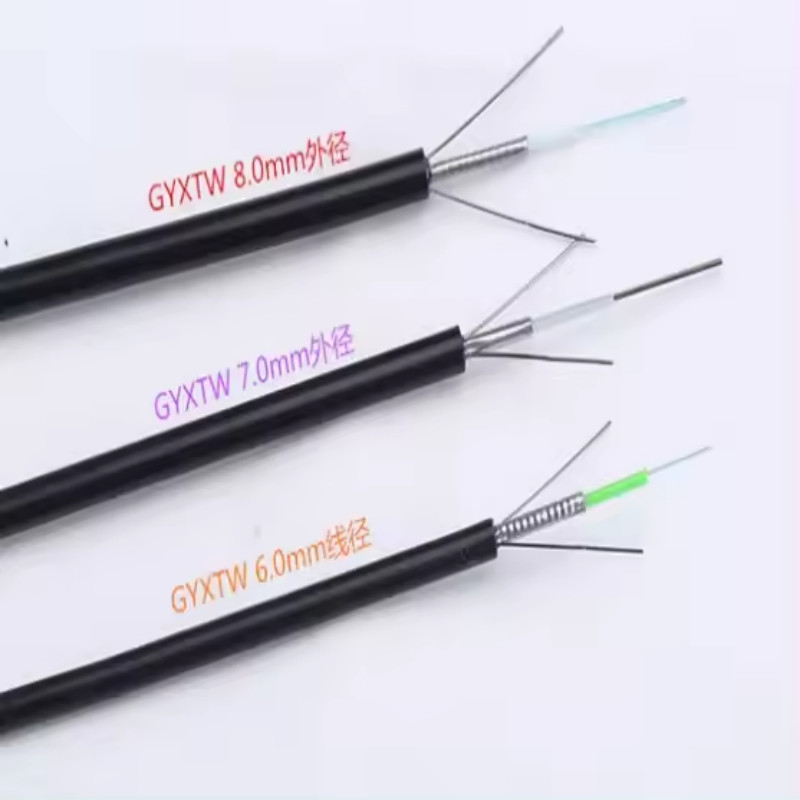

| Jacket Material: | HDPE | Outer Diameter: | 6/7/8mm |
|---|---|---|---|
| Steel Wire: | 0.7/0.8/1.0mm | Color: | Black |
| Fiber Count: | 2/4/6/8/12/24 Core | Structure: | Unit Tube |
| Strength Member: | Two Steel Wire | Installation: | Aerial &Duct |
| Product Name: | Outdoor Optic Fiber Cable | Fiber Type: | YOFC Or As Request |
| Oem: | Available | ||
| Highlight: | gyxtw fiber optic cable,24 Core Armored Fiber Optic Cable |
||
Product Description
Outdoor singlemode overhead armored fibre optical cable gyxtw 2 4 6 8 12 24 core fiber optic cable

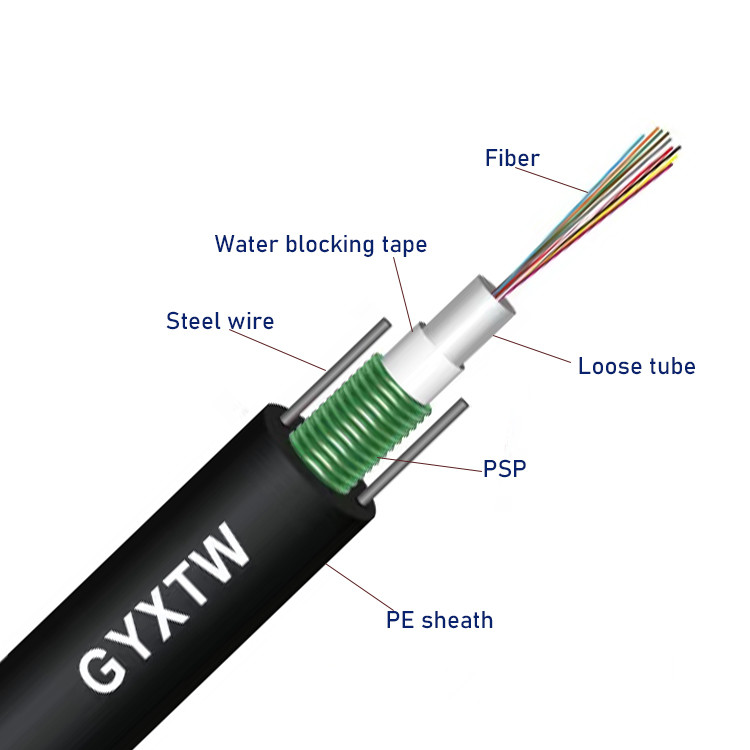

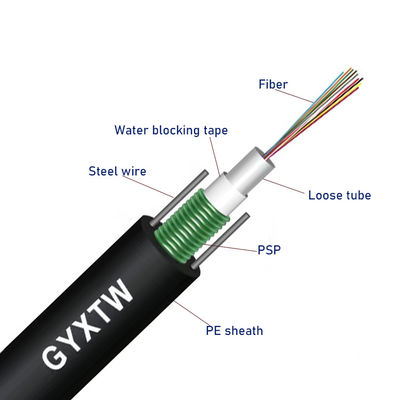

GYXTW Fiber optic cable involves 250μm optical fibers into a loose tube filled with a waterproof compound.water blocking tape is placed between the steel tape and loose tube to insure the cable's compactness and longitudinal water blocking.this type is widely used for long-distance communication and inter-office communication
Features
Good mechanical and temperature performance
High strength loose tube that is hydrolysis resistant
Special tube filling compound ensure a critical protection of fiber
Crush resistance and flexibility

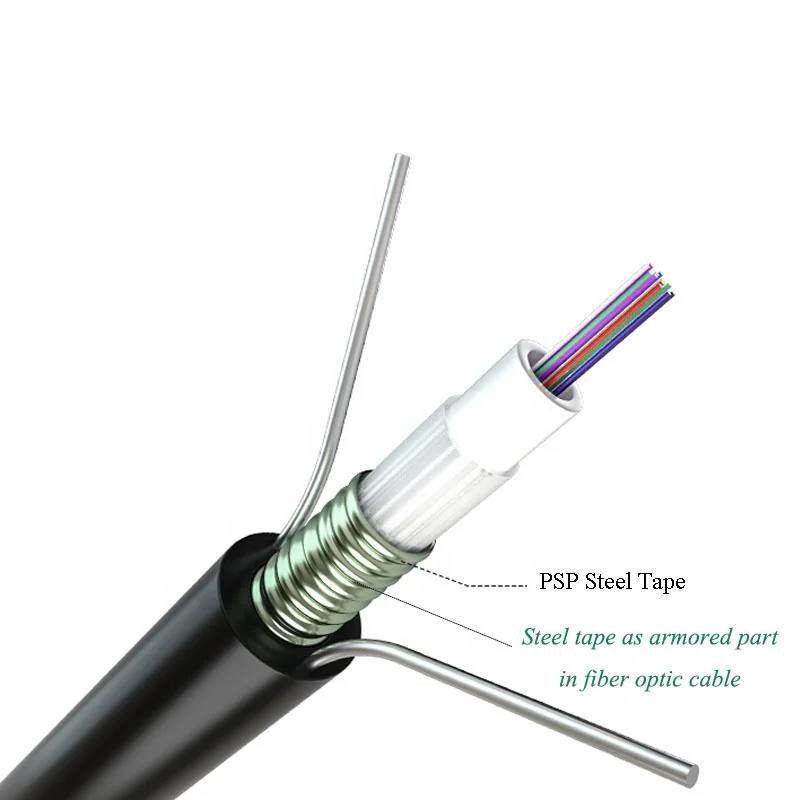

PSP enhancing moisture-proof
Two parallel steel wires ensure tensile strength
Small diameter, light weight and friendly installation
Optical Characteristics
| Items | Unit | Specification | |
| G652D | |||
| Mode Field Diameter | 1310nm | um | 9.2±0.4 |
| 1550nm | um | 10.4±0.5 | |
| Cladding Diameter | um | 124.8±0.7 | |
| Cladding Non-Circularity | % | ≤0.7 | |
| Core-Cladding Concentricity Error | um | ≤0.5 | |
| Coating Diameter | um | 245±5 | |
| Coating Non-Circularity | % | ≤6.0 | |
| Cladding-Coating Concentricity Error | um | ≤12 | |
| Cable Cutoff Wavelength | nm | acc≤1260 | |
| Attenuation(max.) | 1310nm | dB/km | ≤0.36 |
| 1550nm | dBkm | ≤0.22 | |
Cable Parameters
| Items | Specifications | |
| Fiber Count | 2~24 | |
| Colored Coating Fiber | Dimension | 250μm+15μm |
| Color | Blue,Orange,Green,Brown,Gray,White | |
| Loose Tube | Dimension | 2.0mm±0.05mm |
| Material | PBT | |
| Color | Natural | |
| Strength Member | Diameter | 1.0mm |
| Material | Steel | |
| Outer Jacket | Dimension | 8.0mm±0.1mm |
| Material | PE | |
| Color | Black | |
Technical Parameters
| Fiber Count |
Cable Diameter(mm) |
Cable Weight kg/km) |
Tensile Strength Long/Short Term (N) |
Crush Resistance Long/Short Term (N/100mm) |
Bending Radius Static/Dynamic |
| 2~12 | 8 | 78 | 1000/3000 | 1000/3000 | 10D/20D |
| 14~24 | 10 | 90 | 1000/3000 | 1000/3000 | 10D/20D |
Application
Suitable for Duct / Aerial
Storage / Operating Temperature: -40℃~+70℃
Packing&Delivery
1/2/3/4/5 km in one wooden drum,deliver days:5-8work days
Guangzhou Jiqian Fiber Optic Cable Co.Ltd. is located in 2nd Floor,Building B3,Building 3 No.43 Lixin 9th Road,Xintang Town,Zengcheng District,Guangzhou city,Guangdong province,China.It is a large-scale high-tech specialized joint-stock enterprise that integrates scientific research, development,production, and sales. It specializes in producing various types and specifications of optical cables with 2-288 cores. The company adheres to the corporate spirit of "integrity, speed, flexibility, efficiency, and innovation", and strives for perfection, appreciation for customers, and paving the way for success, Adhere to the standard that "customer satisfaction is the most important measure of our performance". We promise to work together with you with high-quality products, discounted prices,and first-class services to create a brilliant career.
We sincerely welcome customers all over the world to visit our factory and build long term relationship with each other.
FAQ
Q1.What is your terms of packing?
A: Generally, we pack our goods in drum with pallet for export.2KM/3KM/4KM/5KM of one drum or as per your requirements
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3. What is your terms of Trade?
A: EXW, FOB, CFR, CIF
Q4. How about your delivery time?
A: Generally, it will take 5 to 7days after receiving your initial. The specific delivery time depends
on the items and the quantity of your order.
Q5. Can you provide OEM or ODM
A: Yes
Q6. What is your sample policy?
A: We provide FREE sample if we have them in stock
Q7. Do you test all your goods before delivery?
A: Yes, all of cables have to be tested before delivery
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
