China Cable Supplier ADSS Single Jacket 48 Core Single Or Multi Mode FRP 1.5mm 100m Span Length Fiber Optic Cable
China Cable Supplier ADSS Single Jacket 48 Core Single Or Multi Mode FRP 1.5mm 100m Span Length Fiber Optic Cable China Cable Supplier ADSS Single Jacket 48 Core Single Or Multi Mode FRP 1.5mm 100m Span Length Fiber Optic Cable China Cable Supplier ADSS Single Jacket 48 Core Single Or Multi Mode FRP 1.5mm 100m Span Length Fiber Optic Cable China Cable Supplier ADSS Single Jacket 48 Core Single Or Multi Mode FRP 1.5mm 100m Span Length Fiber Optic Cable China Cable Supplier ADSS Single Jacket 48 Core Single Or Multi Mode FRP 1.5mm 100m Span Length Fiber Optic Cable
Contact Now

China Cable Supplier ADSS Single Jacket 48 Core Single Or Multi Mode FRP 1.5mm 100m Span Length Fiber Optic Cable

Minimum Order Quantity : 1km Packaging Details : wooden drum,ply wooden drum
Delivery Time : 5-8 work days Payment Terms : L/C, T/T, Western Union
Supply Ability : 4500KM Per Month
Place of Origin: Guangzhou Brand Name: JQ/OEM
Certification: ISO9001 Model Number: ADSS-DJ

Detail Information
Fiber Type: YOFC Or Fiberhome As Request Fiber Count: 2-144 Core
Color: Black Jacket Material: PE Or AT
Name: ADSS Optical Fiber Cable Strength Member: FRP Central Strength Member
Operating Temperature: -40 ~ +60 C Span: 50/100/200/300/400m
Installation: Self- Supporting Aerial Packing: Wooden Drum,ply Wooden Drum
Highlight:

1.5mm Fiber Optic Cable

,

Multi Mode Fiber Optic Cable

,

100m Span Length Fiber Optic Cable

Product Description

Single Mode PE/AT Jacket Aerial Self-Supporting ADSS Fiber Optic Cable

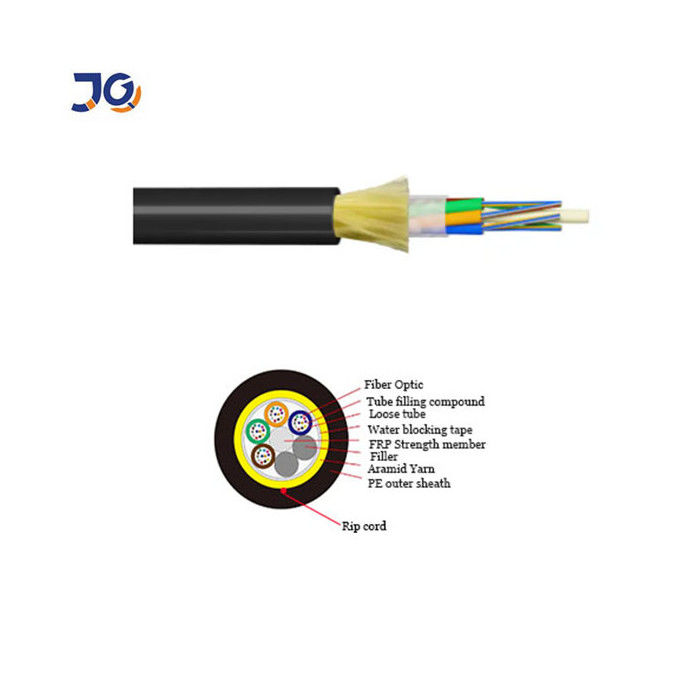

 China Cable Supplier ADSS Single Jacket 48 Core Single Or Multi Mode FRP 1.5mm 100m Span Length Fiber Optic Cable 0



Features

Crush resistance and flexibility,The following measures are taken to ensure the cable watertight

100% cable core filling,Loose tube filling compound

Good mechanical and temperature performance
High strength loose tube that is hydrolysis resistant
Special tube filling compound ensure a critical protection of fiber
Single Fiber Reinforced Plastic as the central strength member



Optical Characteristics



Item
Unit
Specification
Fiber Type
G.652D

Mode field diameter
1310nm
μm
9.2±0.4
1550nm
μm
10.4±0.8
Cladding diameter
μm
125.0±1
Cladding non-circularity
%
≤1.0
Core/cladding concentricity error
μm
≤0.5
Coating diameter
μm
245±5
Coating non-Circularity
%
≤6.0
Coating/cladding concentricity error
μm
≤12.0
Cable cut-off wavelength
nm
≤1260

Attenuation Coefficient
1310nm
dB/km
≤0.36
1550nm
dB/km
≤0.22
Proof stress level
kpsi
≥100



Can be installed without shutting off the power.

Excellent AT performance, The maximum inductive at the operating point of AT sheath can reach 25kV.

Light weight and small diameter reducing the load caused by ice and wind and the load on towers and backprops.

Large span lengths and the largest span is over 1000m.

Good performance of tensile strength and temperature.

The design life span is 30 years.

Technical Data



Structure and Technical Specifications ADSS-DJ(50-500m Span)



Ref.Outer

Diameter

(mm)



Ref.Weight

kg/km)



Rec.DailyMax.

Working

Tension(kN)



Max

Allowable

Working

Tension

[kN)



Break

Strength

(kN)



Strength

Member

CSA.

(kN/mm2)



Modulusof

Elasticity

CSA

kNmm2)[



Heat

Expansion

Coefficient

(X10-6/K)



SuitableSpan

Meter

ABICP



PE



AT







12.5



125



136



1.5



4



10



4.6



7.6



1.8



160



100



140



100



13.0



132



142



2.25



6



15



7.6



8.3



1.5



230



150



200



150



13.3



137



148



3.0



8



20



10.35



9.45



1.3



300



200



290



200



13.6



145



156



3.6



10



24



13.8



10.8



1.2



370



250



350



250



13.8



147



159



4.5



12



30



14.3



11.8



1.0



420



280



400



280



14.5



164



177



5.4



15



36



18.4



13.6



0.9



480



320



460



320



14.9



171



185



6.75



18



45



22.0



16.4



0.6



570



380



550



380



15.1



179



193



7.95



22



53



26.4



18.0



0.3



670



460



650



460



15.5



190



204



9.0



26



|60



32.2



19.1



0.1



750



530



750



510









Product Picture

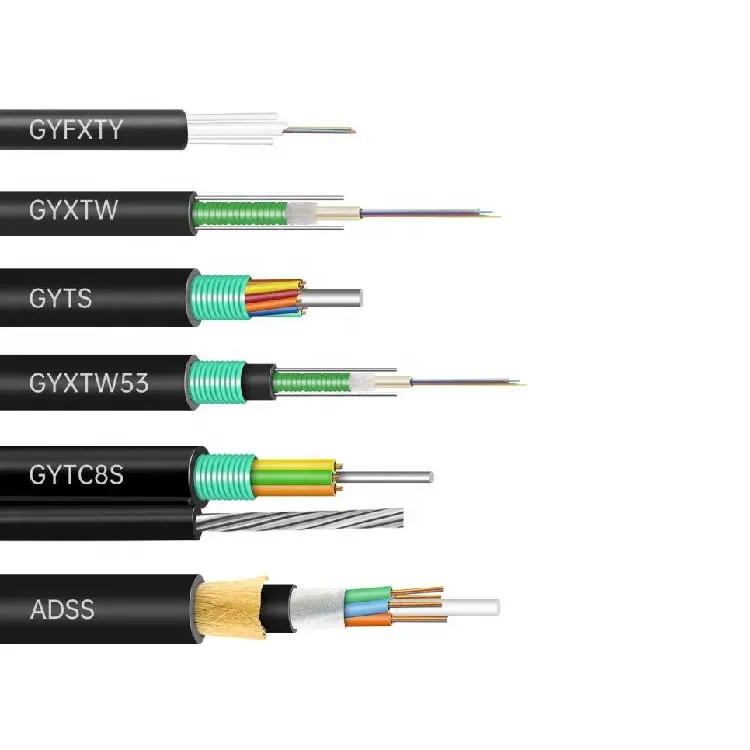

China Cable Supplier ADSS Single Jacket 48 Core Single Or Multi Mode FRP 1.5mm 100m Span Length Fiber Optic Cable 1

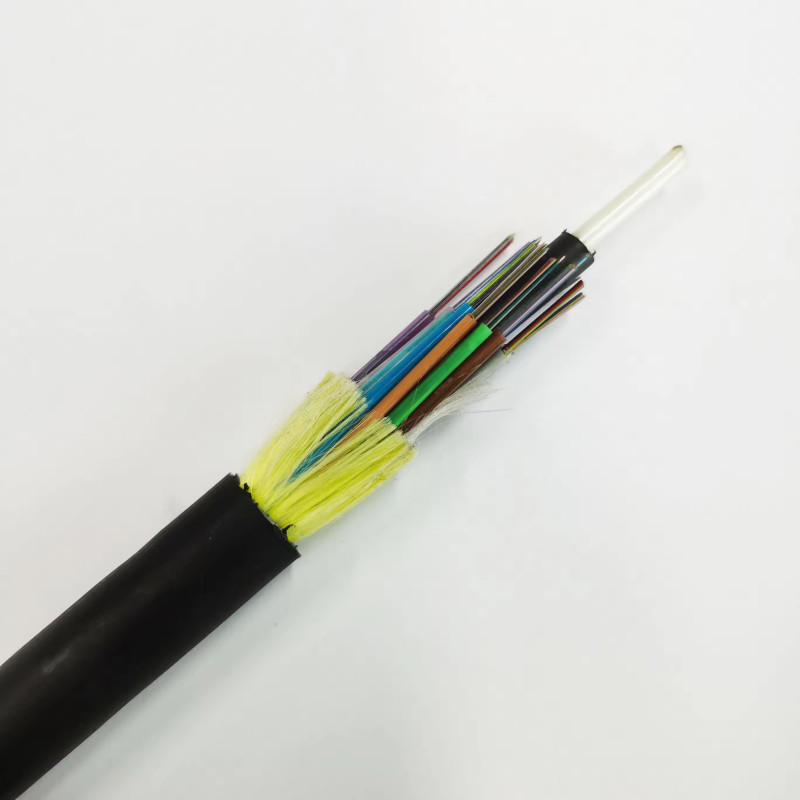

China Cable Supplier ADSS Single Jacket 48 Core Single Or Multi Mode FRP 1.5mm 100m Span Length Fiber Optic Cable 2



Application

Suitable for Aerial Laying method

Storage / Operating Temperature: -40℃~+70℃



Certifications

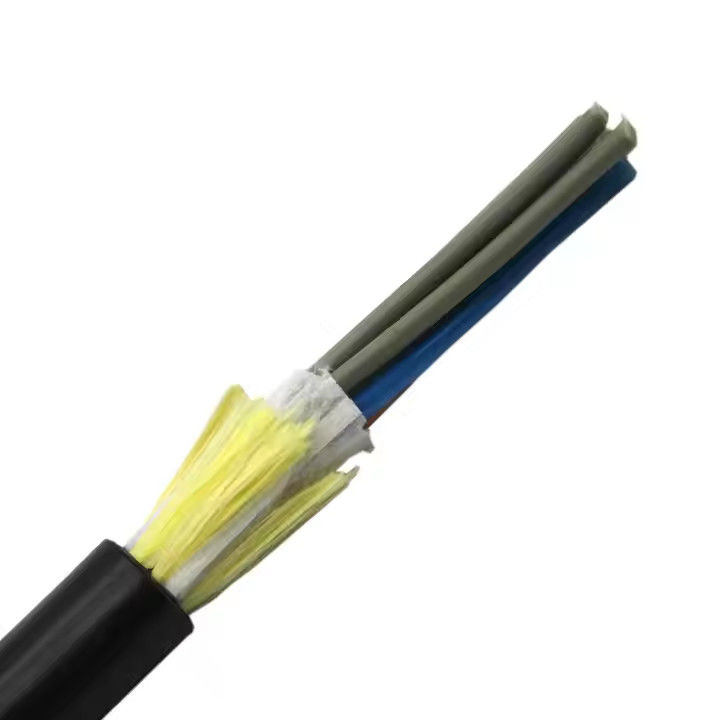

China Cable Supplier ADSS Single Jacket 48 Core Single Or Multi Mode FRP 1.5mm 100m Span Length Fiber Optic Cable 3



Package Detail

Export Wooden drum,Normal shipping length of the cable will be 2km or 3km.
Other length is also available if required by buyer.
Mark:Usually we only attach the test report on the packaging, but your request is available too.
For example:
A.Company Name
B.Gross/Net Weight
C.Fiber Type
D.Cable Length

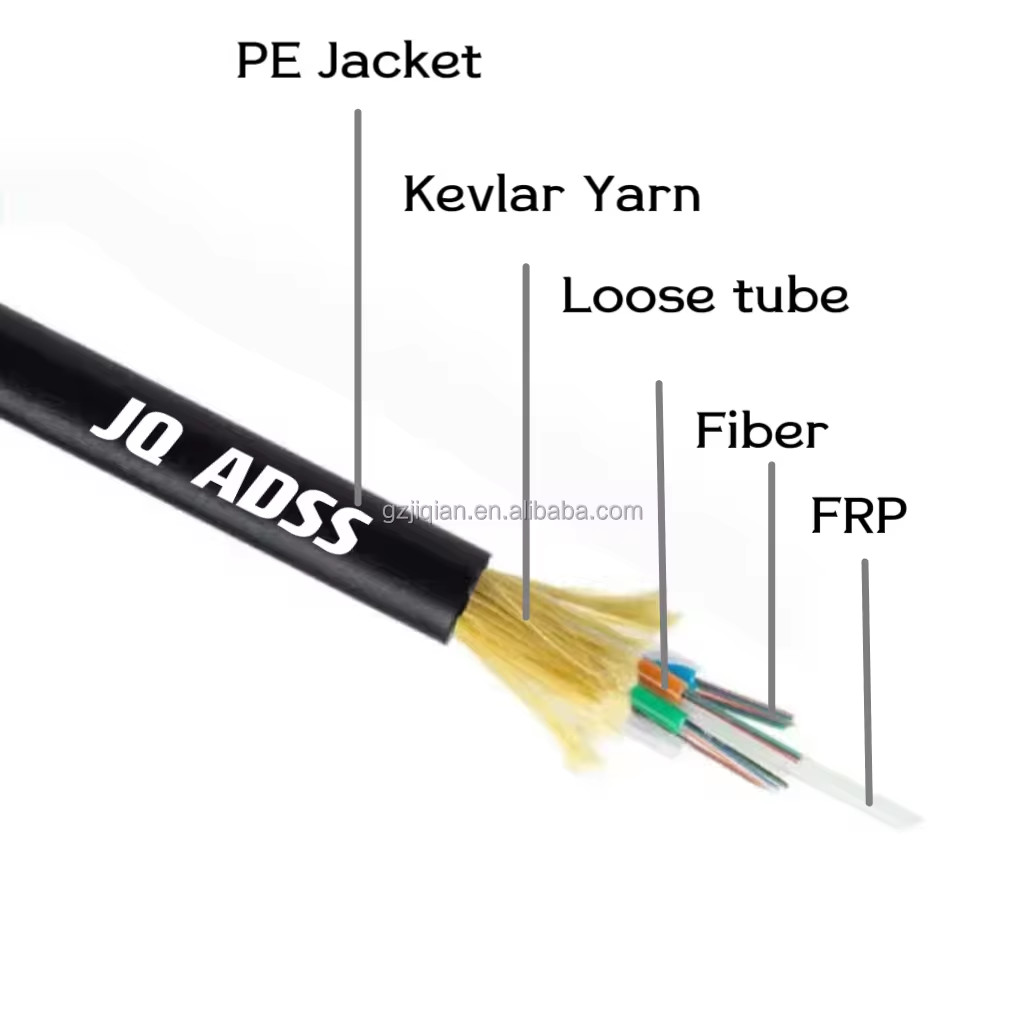

China Cable Supplier ADSS Single Jacket 48 Core Single Or Multi Mode FRP 1.5mm 100m Span Length Fiber Optic Cable 4





FAQ

1. Can I get a sample?
A: Yes, we provide FREE sample and you just need to pay for express freight.

2. Can you accept small order?
A: Yes, small order is available. We support new project of our customers, as we know business is always from small order.

3. What is your delivery time?
A: The general delivery time is 7-20 days after order confirmed. It depends on the order quantity.

4. Can you accept the OEM service?
A: Yes, we welcome the OEMservice. We can print your logo on the product. Any idea from you is available.
