Single Jacket ADSS Fiber Optic Cable 80m 100m 120m Span
Contact Person : JQ CABLE
Phone Number : +8618122383351
whatsapp : +8618122383351
| Minimum Order Quantity : | 20km | Packaging Details : | Wooden drum or Iron drum |
|---|---|---|---|
| Delivery Time : | 13 days | Payment Terms : | T/T, Western Union,Alipay, MoneyGram, L/C |
| Supply Ability : | 21500KM per month |
| Place of Origin: | Guangdong China | Brand Name: | HAISO/JQ |
|---|---|---|---|
| Certification: | ISO9001 CE ROHS Rohs | Model Number: | ADSS-4C/12FC/24C/48C/96C |
|
Detail Information |
|||
| Application: | Long Distance Telecommunication | Fiber Counts: | 4-576cores |
|---|---|---|---|
| Span: | 50m 120m /200 M /300m /400m | Fiber Per Tube: | 4/6/8/12/24/48F |
| Sample: | Yes | Strength Number: | FRP, Kevlar Aramid Yarn |
| Structure: | Stranded Loose Tube | Jacket Color: | Black Yellow Bule Or Customized |
| Operating Temperature: | -40℃ To +80℃ | Fiber Type: | G652D, OM1, G655, OM4, OM5 |
| Highlight: | ADSS Singlemode Fiber Optic Cable,All Dieletric Singlemode Fiber Optic Cable |
||
Product Description
no menta All Dieletric Self-Supporting ADSS singlemode Fiber Optic Cable HDPE Sheathed with yarn
ADSS destricption
Optic Cable ADSS
The ADSS cable is a cable that is strong enough to support itself between structures without the use of conductive metal elements.
The cable is designed specifically for air transmission and distribution line environments. As the name suggests, the cable has no metal
parts and requires no support or suspension wires, so it can be installed in a single installation, making the ADSS cable an economical
and easy way to build an optical fiber network.
Characteristics
· Can be installed without shutting off the power
· Excellent AT performance, The maximum inductive at the operating point of AT sheath can reach 25kV
· Light weight and small diameter reducing the load caused by ice and wind and the load on towers
and backprops
· Large span lengths and the largest span is over 1000m
· Good performance of tensile strength and temperature
· The design life span is 30 years
·Application
The actual status of overhead power lines is taken into full consideration when ADSS cable is being designed. For overhead power lines under 110kV,
PE outer sheath is applied. FOR power lines equal to or over 110kV, AT outer sheath is applied. The dedicate design of aramid quantity and stranding
process can satisfy the demand on various spans.
·Standards
ADSS cable complies with Standard IEEE P 1222 as well as IEC 60794-1.
Structure and Technical Specifications
1. ADSS single jacket
| fiber count | structure | fiber per tube |
losse tube diameter (MM) |
FRP/pad diameter (mm) | Thickness of outer jacket(mm) | Ref. Outer Diameter (mm) |
Ref. Weight (kg/km) |
|
| PE Jacket | AT Jacket | |||||||
| 4 | 1+5 | 4 | 1.9 | 2.0/2.0 | 1.7±0.1 | 9.8 | 80 | 90 |
| 6 | 1+5 | 6 | 1.9 | 2.0/2.0 | 1.7±0.1 | 9.8 | 80 | 90 |
| 8 | 1+5 | 4 | 1.9 | 2.0/2.0 | 1.7±0.1 | 9.8 | 80 | 90 |
| 12 | 1+5 | 6 | 1.9 | 2.0/2.0 | 1.7±0.1 | 9.8 | 80 | 90 |
| 24 | 1+5 | 6 | 2.0 | 2.0/2.0 | 1.7±0.1 | 9.8 | 85 | 95 |
| 48 | 1+5 | 12 | 2.0 | 2.0/2.0 | 1.7±0.1 | 10.0 | 88 | 98 |
| 72 | 1+6 | 12 | 2.2 | 2.0/2.0 | 1.7±0.1 | 10.5 | 98 | 108 |
| 96 | 1+8 | 12 | 2.2 | 2.0/3.4 | 1.7±0.1 | 12.0 | 122 | 135 |
| 144 | 1+12 | 12 | 2.2 | 3.0/7.2 | 1.7±0.1 | 15.2 | 176 | 189 |
Tips: all the specifications in the abolve table is approximate data, for more detals specifications,
pls contact our salers.
2. ADSS double jacket
| fiber count | structure | fiber per tube |
losse tube diameter (MM) |
FRP/pad diameter (mm) | Thickness of outer jacket(mm) | Ref. Outer Diameter (mm) |
Ref. Weight (kg/km) |
|
| PE Jacket | AT Jacket | |||||||
| 4 | 1+5 | 4 | 1.9 | 2.0/2.0 | 1.7±0.1 | 12.0 | 125 | 135 |
| 6 | 1+5 | 6 | 1.9 | 2.0/2.0 | 1.7±0.1 | 12.0 | 125 | 135 |
| 8 | 1+5 | 4 | 1.9 | 2.0/2.0 | 1.7±0.1 | 12.0 | 125 | 135 |
| 12 | 1+5 | 6 | 1.9 | 2.0/2.0 | 1.7±0.1 | 12.0 | 125 | 135 |
| 24 | 1+5 | 6 | 2.0 | 2.0/2.0 | 1.7±0.1 | 12.0 | 128 | 138 |
| 48 | 1+5 | 12 | 2.0 | 2.0/2.0 | 1.7±0.1 | 12.5 | 130 | 140 |
| 72 | 1+6 | 12 | 2.2 | 2.0/2.0 | 1.7±0.1 | 13.2 | 145 | 155 |
| 96 | 1+8 | 12 | 2.2 | 2.0/3.4 | 1.7±0.1 | 14.5 | 185 | 195 |
| 144 | 1+12 | 12 | 2.2 | 3.0/7.2 | 1.7±0.1 | 16.5 | 212 | 228 |
Tips: all the specifications in the abolve table is approximate data, for more detals specifications,
pls contact our salers.
|
Fiber type |
Attenuation (+20℃) |
Bandwidth |
Optical cable cut-off wavelength |
||||
|---|---|---|---|---|---|---|---|
|
@850nm |
@1300nm |
@1310nm |
@1550nm |
@850nm |
@1300nm |
||
| G.652 | --- | --- | ≤0.36dB/km | ≤0.22dB/km | --- | --- | ≤1260nm |
| G.655 | --- | --- | ≤0.40dB/km | ≤0.23dB/km | --- | --- | ≤1450nm |
| 50/125µm | ≤3.3dB/km | ≤1.2dB/km | --- | --- | ≥500MHz·km | ≥500MHz·km | --- |
| 62.5/125µm | ≤3.5dB/km | ≤1.2dB/km | --- | --- | ≥200MHz·km | ≥500MHz·km | --- |
Details picture shows

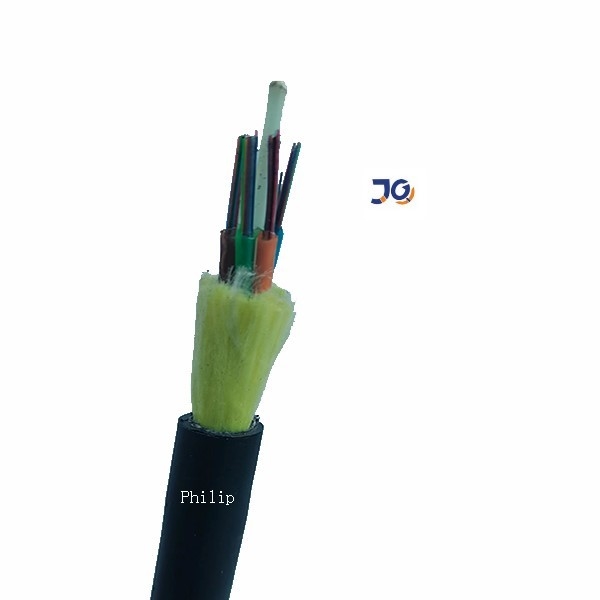

single jacket ADSS fiber cable

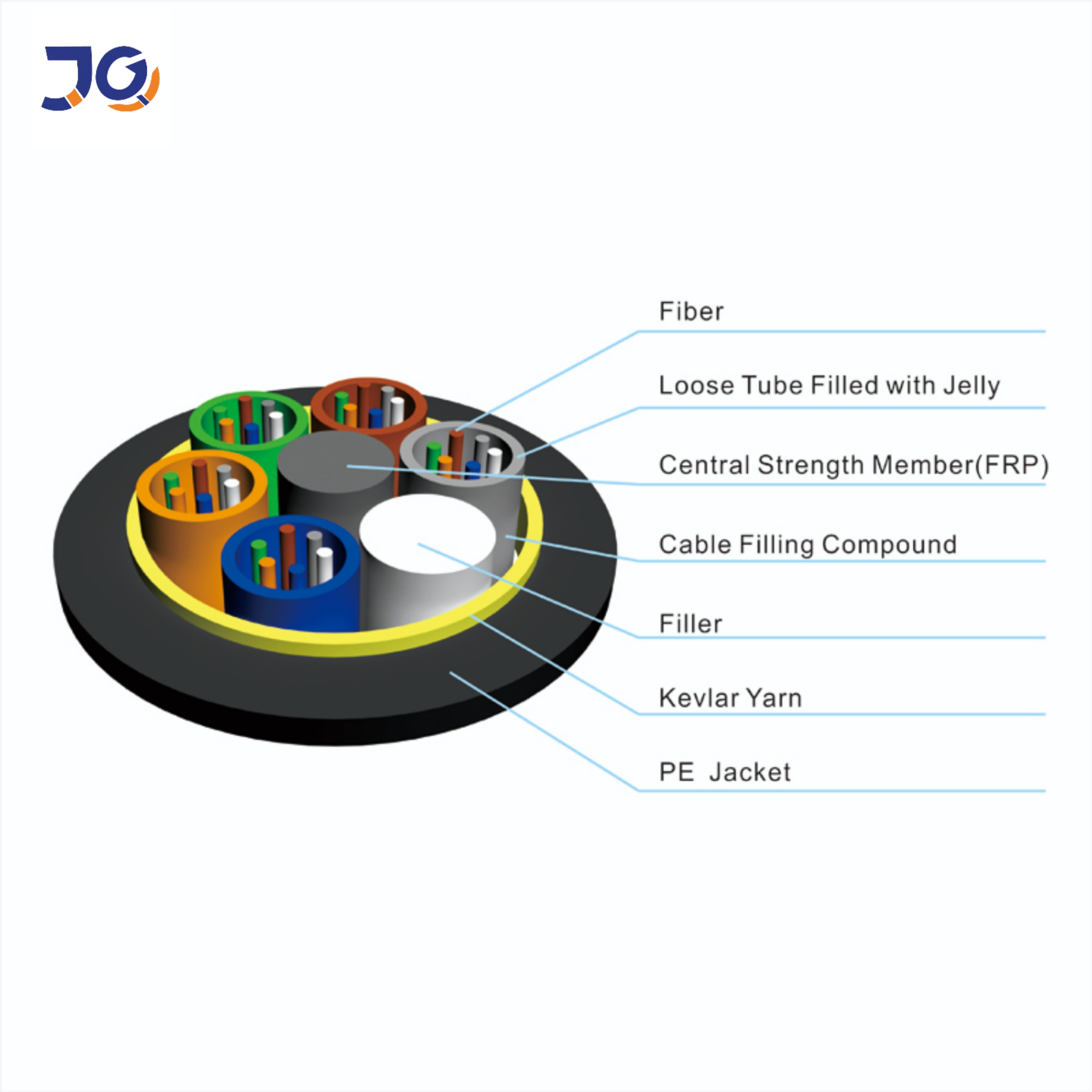

double jacket ADSS fiber optic cable

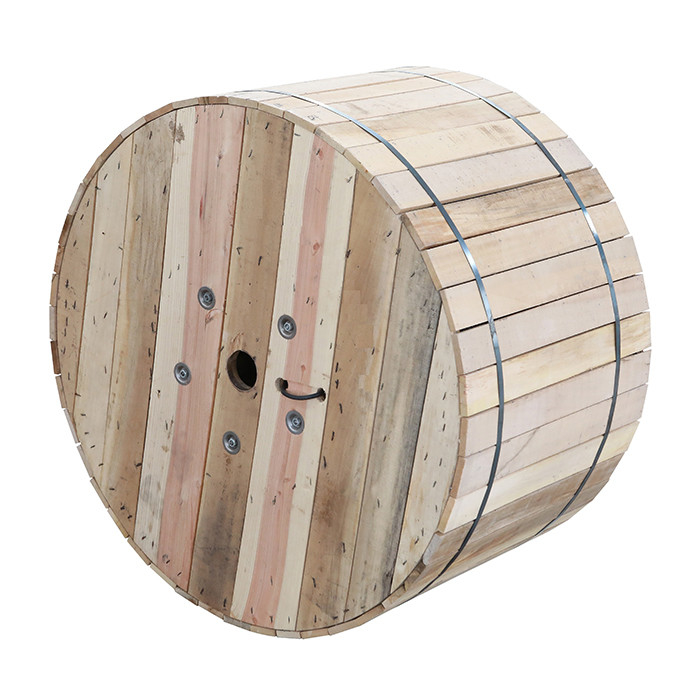

Packing:
1. Are you factory direct?
as a professional Cable manufacturer, specialized in Fiber Optic Cable, MPO Breakout Cable, Fiber Optic Patch Cord.
Our products are mainly exported to Europe, South America, and some other countries and areas.
2. What is your main products?
Outdoor fiber optic cables indoor fiber optic cables FTTH Drop cables ADSS
Indoor armored patch cords fiber cable Optical patch cords Sc LC FC ST MTP MPO optical patch cord
3. Product quality guarantee period?
20 years Guarantee for fiber optic cable
4. Do you have certificate for raw material?
We build long-term relationship cooperation with qualified ISO9001 ROHS raw material suppliers
