Customized GYXTW Armored 2 4 6 8 12 24 Core Single Mode Fiber Optic Cable 6mm 7mm 8mm With Messenger
Contact Person : JQ CABLE
Phone Number : +8618122383351
whatsapp : +8618122383351
| Minimum Order Quantity : | 1km | Packaging Details : | Plywood drum |
|---|---|---|---|
| Delivery Time : | Normally 3-5 days,it depends on order quantity | Payment Terms : | L/C, T/T, Western Union,Alipay |
| Supply Ability : | 6000km per month |
| Place of Origin: | China | Brand Name: | Jiqian |
|---|---|---|---|
| Certification: | ISO9001 ROHS CE FCC | Model Number: | ADSS 144B1 |
|
Detail Information |
|||
| Place Of Origin: | Guangzhou China | Brand Name: | Jiqian |
|---|---|---|---|
| Number Of Conductors: | 4-288 Cores | Strength Member: | FRP |
| Storage/operating Temperature:: | -40 +70 °C | Application: | Overhead |
| OEM: | Yes | Factory: | Yes |
| Structure: | Stranded Loose Tube | Package: | Plywood Drum |
| Highlight: | Overhead Fiber Optic Cable ADSS,48 Core Overhead Fiber Optic Cable |
||
Product Description

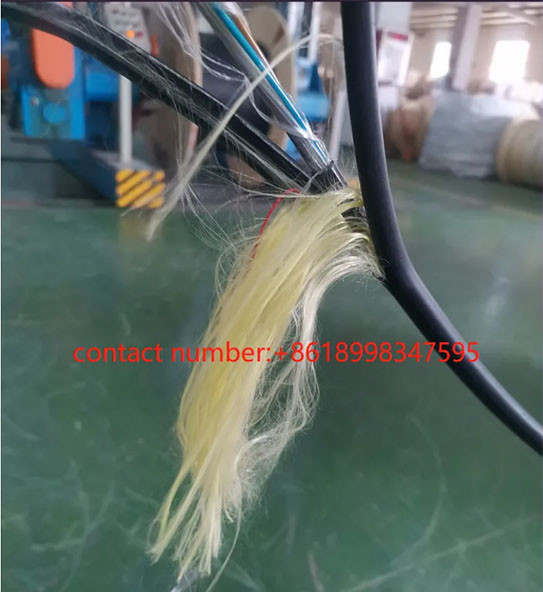

Overhead fiber optic cable ADSS 48 core optical fiber cable price

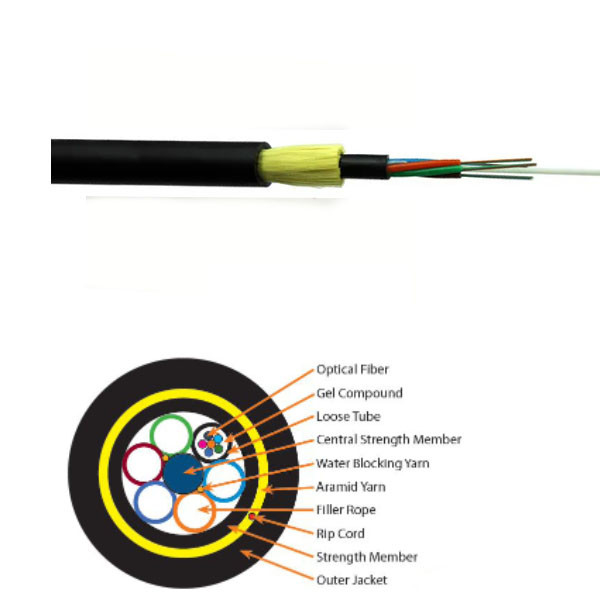

Cable Performance
|
Item |
Contents |
Value | |||
| 6/12/24 | 48 | 72 | 96 | ||
| Structure | Type | 1+6 | 1+6 | 1+8 | 1+12 |
|
Loose tube |
Max Fiber counts/tube | 6 | 12 | 12 | 12 |
| Outer diameter (mm) | 1.9±0.1 | 2.2±0.1 | 2.2±0.1 | 2.2±0.1 | |
|
Central strength member |
Material | FRP | |||
| Diameter (mm) | 1.4 | 1.6 | 2.0 | 2.2 | |
| PE layer diameter (mm) | -- | -- | 3.5 | ||
| Peripheral strength member | Material | FRP | |||
|
Sheath |
Material | HDPE | |||
| Color | Black | ||||
| Thickness (mm) | Nominal: 1.6 | ||||
| Cable diameter(mm) Approx. | 9.8±0.2 | 10.0±0.2 | 10.5±0.3 | 11.8±0.3 | |
| Cable weight(kg/km) Approx. | 85 | 89 | 99 | 124 | |
Fiber parameter
| Item | Unit | Specification | |
| Fiber Type | G.652D | ||
| Mode field diameter | 1310nm | μm | 9.2±0.4 |
| 1550nm | μm | 10.4±0.8 | |
| Cladding diameter | μm | 125.0±1 | |
| Cladding non-circularity | % | ≤1.0 | |
| Core/cladding concentricity error | μm | ≤0.5 | |
| Coating diameter | μm | 245±5 | |
| Coating non-Circularity | % | ≤6.0 | |
| Coating/cladding concentricity error | μm | ≤12.0 | |
| Cable cut-off wavelength | nm | ≤1260 | |
| Attenuation Coefficient | 1310nm | dB/km | ≤0.36 |
| 1550nm | dB/km | ≤0.22 | |
| Proof stress level | kpsi | ≥100 | |
Company profile:
Guangzhou jiqian fiber optic cable co.,ltd is a high-tech company group engaged in researching, manufacturing, selling
communication products with our import and export rights. Our corporation is a professional manufacturer of fiber optic cable for 10 years, with ISO9001, FCC, ROHS and CE certificates. We OEM or design any structure of fiber optic cable for you. The main products of our company are: optical fiber cables/FTTH Drop Cable. All of the products are widely used in telecom, railway and other communication products related department, exported to many countries and districts such as North/South America, Europe, Mideast and Southeast Asia.Africa
Exhibition
FAQ:
1.Are you a manufacturer or trade company?
Yes. We are a factory in Guangzhou,China
2.Do you provide samples? is it free or charched?
Yes, sample is available, It's free,just need to pay for the freight
3.Do you accept small order?
Yes, small order is available .We support new project of our customers as we know business is always from small order.
4.What is your warranty period?
25 years for fiber optic cable
5.Which kind of certification you have ?
ISO9001/CE/ROHS/FCC
6.What is your delivery time?
Usually 5-7 working days,It depends on order quantity
7.What is your fiber brand?
Corning,YOFC ,Fiberhome
8.What is your payment method?
T/T, L/C, Western Union and Paypal.
9.Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your requirements
