Overhead 652D 288 Core HDPE Outer Jacket Optical Fiber Ribbon Cable Multi Tube Gel-Filled Outdoor Optic Fiber Cable
Overhead 652D 288 Core HDPE Outer Jacket Optical Fiber Ribbon Cable Multi Tube Gel-Filled Outdoor Optic Fiber Cable
Overhead 652D 288 Core HDPE Outer Jacket Optical Fiber Ribbon Cable Multi Tube Gel-Filled Outdoor Optic Fiber Cable Overhead 652D 288 Core HDPE Outer Jacket Optical Fiber Ribbon Cable Multi Tube Gel-Filled Outdoor Optic Fiber Cable Overhead 652D 288 Core HDPE Outer Jacket Optical Fiber Ribbon Cable Multi Tube Gel-Filled Outdoor Optic Fiber Cable Overhead 652D 288 Core HDPE Outer Jacket Optical Fiber Ribbon Cable Multi Tube Gel-Filled Outdoor Optic Fiber Cable Overhead 652D 288 Core HDPE Outer Jacket Optical Fiber Ribbon Cable Multi Tube Gel-Filled Outdoor Optic Fiber Cable Overhead 652D 288 Core HDPE Outer Jacket Optical Fiber Ribbon Cable Multi Tube Gel-Filled Outdoor Optic Fiber Cable
Contact Now

Overhead 652D 288 Core HDPE Outer Jacket Optical Fiber Ribbon Cable Multi Tube Gel-Filled Outdoor Optic Fiber Cable

Minimum Order Quantity : 1KM Price : 200-600USD/KM
Packaging Details : wooden drum Delivery Time : 3-5 days, it depends on your quantity
Payment Terms : L/C, D/A, T/T, Western Union, MoneyGram Supply Ability : 60000KM/month
Place of Origin: Guangdong,China Brand Name: Jiqian
Certification: CE/ISO9001 Model Number: GYDXTW

Detail Information
Fiber Count: 48-288Core Strength Member: Metal Reinforcement
Warranty: 25 Years MOQ: 1KM
OEM: Yes Amoured: Yes
Length: 1/2/3/4/5KM Feature: The Fiber Is Fiber Ribbon With Large Quantity Core
Highlight:

Ribbon Outdoor Optic Fiber Cable

,

652D Outdoor Optic Fiber Cable

Product Description

Overhead 652D 288 core HDPE Outer Jacket Optical Fiber ribbon Cable Multi Tube Gel-filled Outdoor Optic Fiber Cable



Product description

Fiber Ribbon cable refers to the fiber optic cable with fiber ribbon structure. Fiber ribbon cable can be divided into stranded type and center tube type

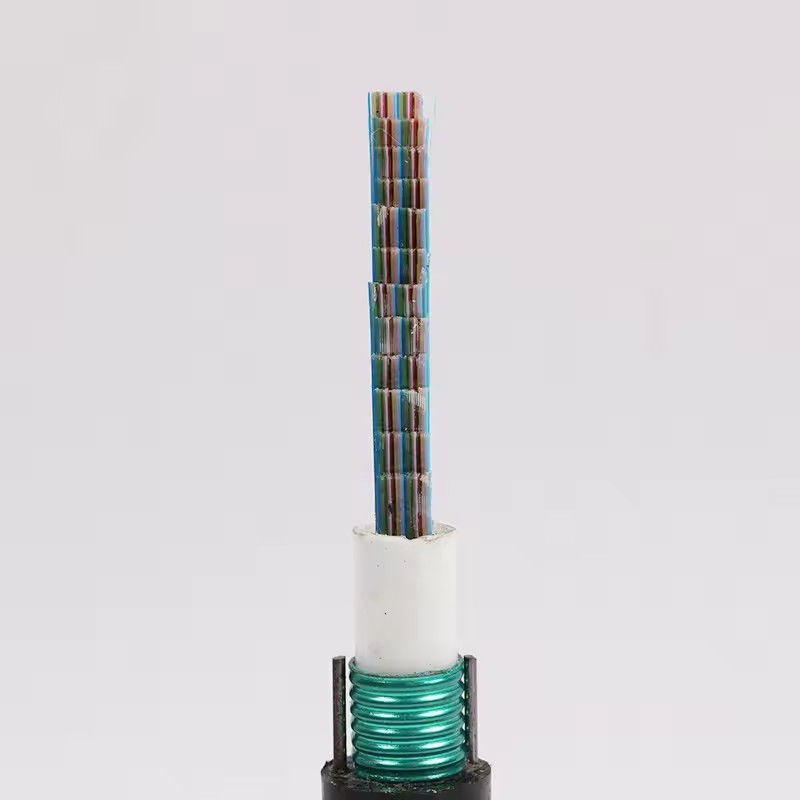

Overhead 652D 288 Core HDPE Outer Jacket Optical Fiber Ribbon Cable Multi Tube Gel-Filled Outdoor Optic Fiber Cable 0

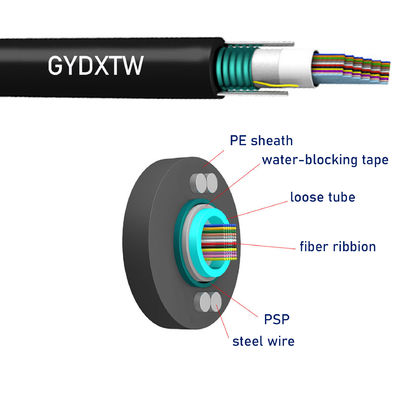

Overhead 652D 288 Core HDPE Outer Jacket Optical Fiber Ribbon Cable Multi Tube Gel-Filled Outdoor Optic Fiber Cable 1
Specification
Product Name
Overhead 652D 288 core HDPE Outer Jacket Optical Fiber ribbon Cable Multi Tube Gel-filled Outdoor Optic Fiber Cable
Fiber Count
48-384 Fibers,can be customized according to customers' requirement
Fiber Type
Singlemode G.652D / G.657A1
Outer Jacket Material
usually PE,plastic,LSZH,can be customized
Application
aerial,overhead
Diameter
depends on quantity of fiber and structure
Cable Length
1km,2km,3km,5km per drum,can be customized
Test Wavelength
1310/1550nm
Operation Temperature
-40℃ to +70℃
Strengthen
FRP in the centre of the fiber optic cable
Color
usually black,can be customized
Fiber Parameter
Item
Unit
Specification
Fiber Type
G. 652
Mode field diameter
1310nm
μm
9.2 ± 0.4
1550nm
μm
10.4 ± 0.8
Cladding diameter
μm
125.0 ± 1
Cladding non-circularity
%
≤1.0
Core/cladding concentricity error
μm
≤0.5
Coating diameter
μm
242 ± 7
Coating/cladding concentricity error
μm
≤12
Cable cut-off wavelength
nm
≤12
Attenuation Coefficient
1310nm
dB/km
≤0.36
1550nm
dB/km
≤0.22
Proof stress level
kpsi
≥100
Related Products

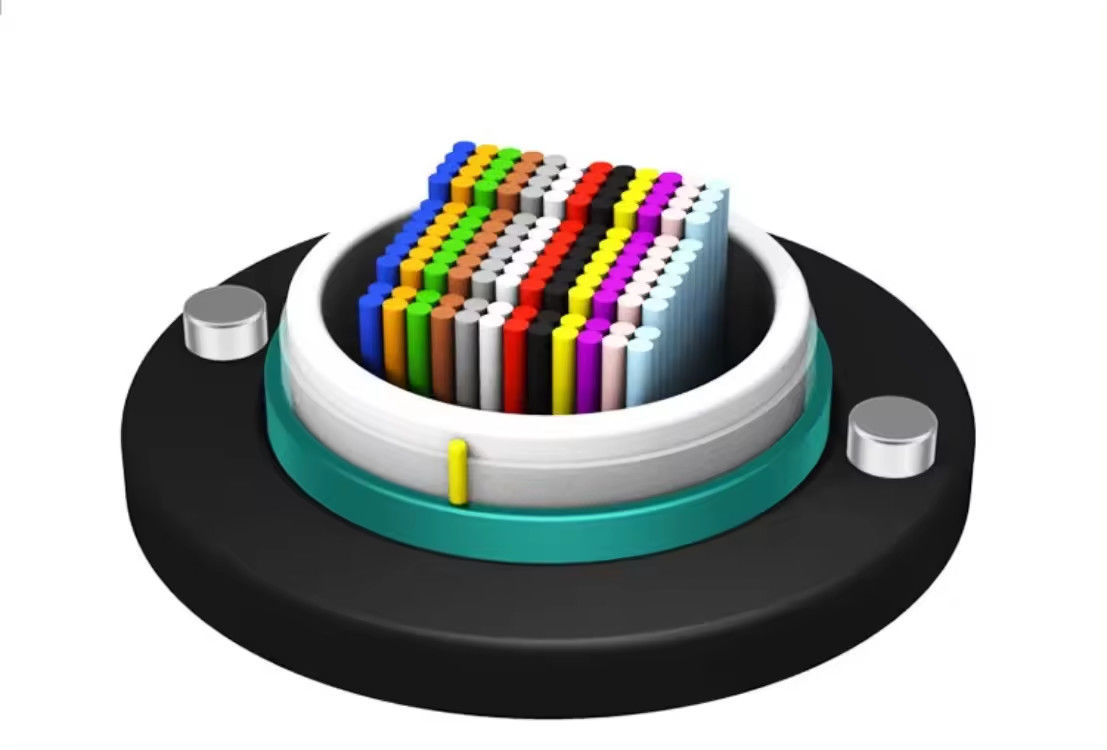

Overhead 652D 288 Core HDPE Outer Jacket Optical Fiber Ribbon Cable Multi Tube Gel-Filled Outdoor Optic Fiber Cable 2
Overhead 652D 288 Core HDPE Outer Jacket Optical Fiber Ribbon Cable Multi Tube Gel-Filled Outdoor Optic Fiber Cable 3
Above are some other styles for reference,we can also customize according to customers' requirements like quantity of fibers,structure,diameter,weight,color of the cables.

Packing & Delivery

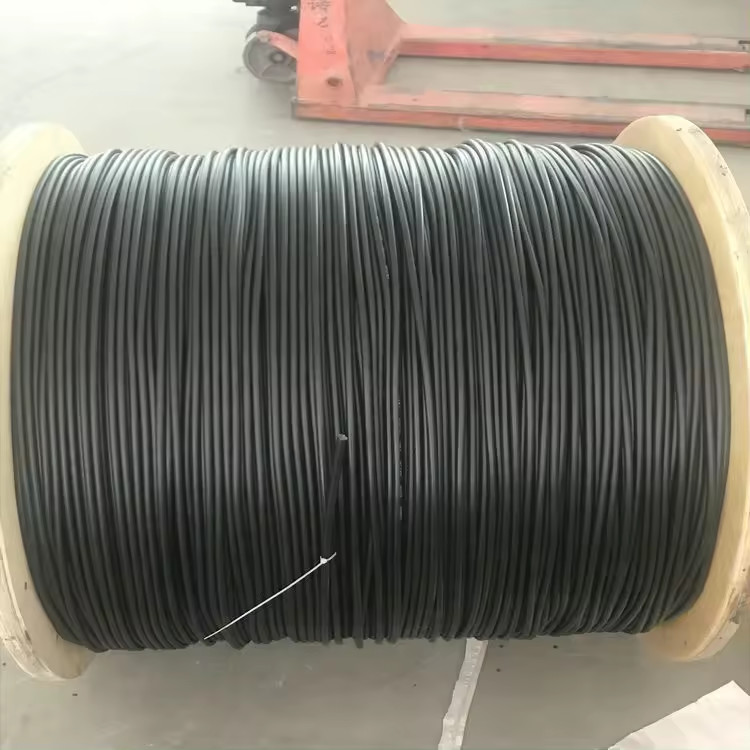

Overhead 652D 288 Core HDPE Outer Jacket Optical Fiber Ribbon Cable Multi Tube Gel-Filled Outdoor Optic Fiber Cable 4
Overhead 652D 288 Core HDPE Outer Jacket Optical Fiber Ribbon Cable Multi Tube Gel-Filled Outdoor Optic Fiber Cable 5
Packaing detail:
1km/ 2km/3km/4km 5km per plywooden drum

Shipping:
By sea/by air or express delivery,it depends on the order quantity
Company Profile
Guangzhou Jiqian fiber optic cable co.,ltd is a high-tech company engaged in researching, manufacturing, selling communication products with our import and export rights. Our corporation is a professional manufacturer of fiber optic cable and patch cord over 8 years, with ISO 9001:2015 certificate. OEM is available and we can design any kind of fiber optic cables for you.The main products of our company are optical fiber cables and related optical fiber components. All of the products are widely used in telecom, and exported to many countries,for example Egypt, Pakistan, Maldives India,Brazil and Chile etc.
00:00

00:12

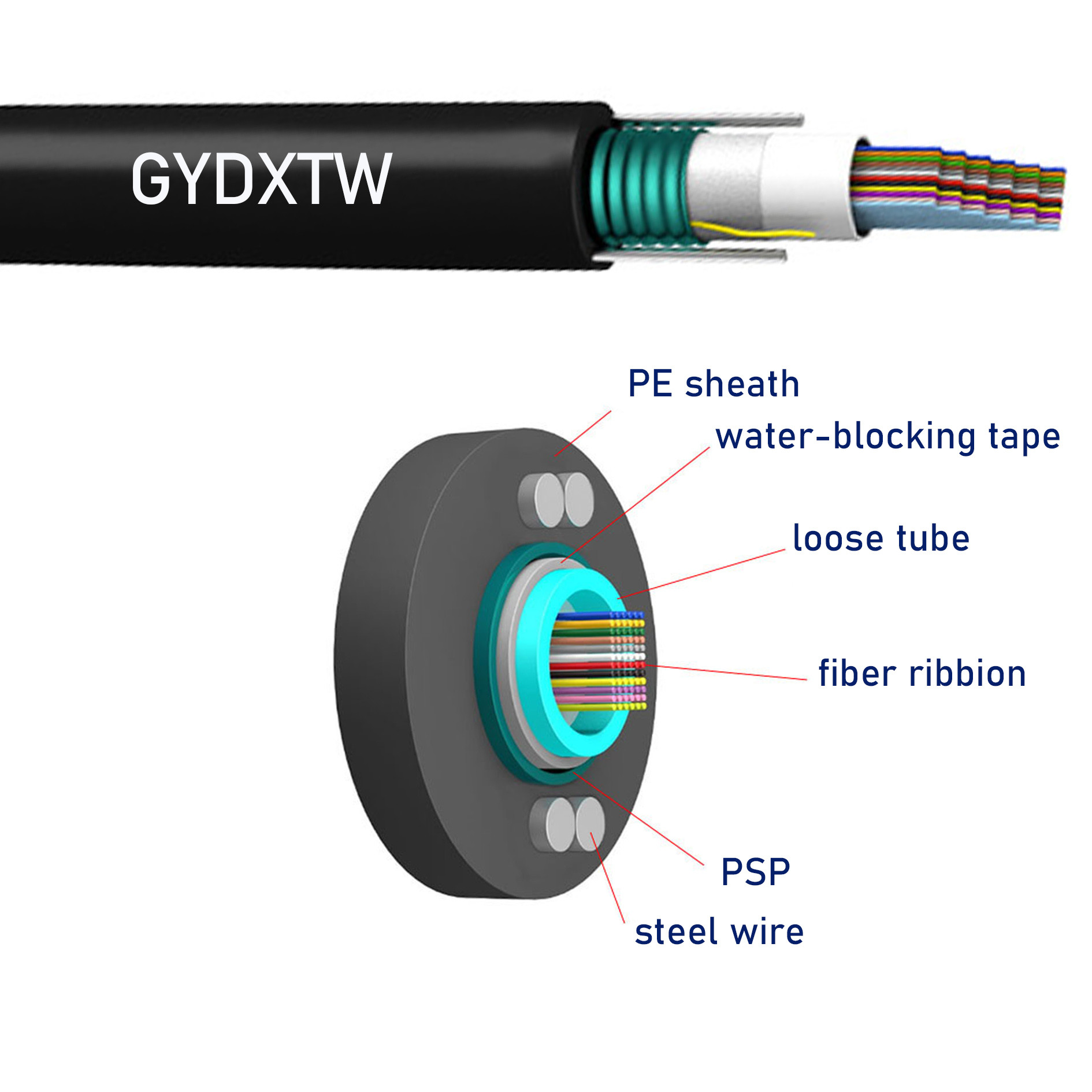

Overhead 652D 288 Core HDPE Outer Jacket Optical Fiber Ribbon Cable Multi Tube Gel-Filled Outdoor Optic Fiber Cable 6

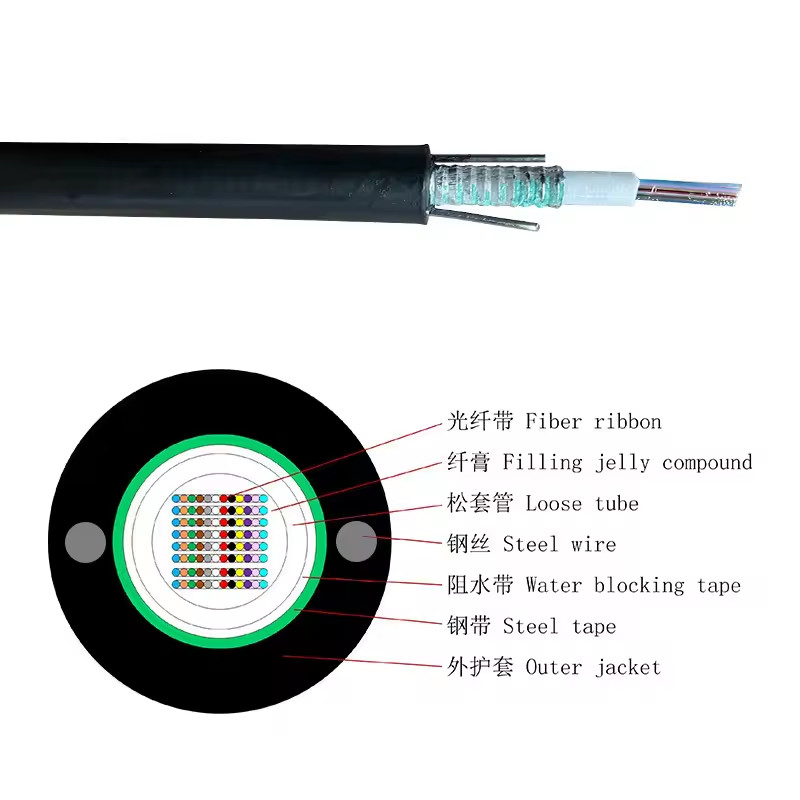

Overhead 652D 288 Core HDPE Outer Jacket Optical Fiber Ribbon Cable Multi Tube Gel-Filled Outdoor Optic Fiber Cable 7
