Customized GYXTW Armored 2 4 6 8 12 24 Core Single Mode Fiber Optic Cable 6mm 7mm 8mm With Messenger
Contact Person : JQ CABLE
Phone Number : +8618122383351
whatsapp : +8618122383351
| Minimum Order Quantity : | 1 Kilometer | Packaging Details : | Wooden Drum |
|---|---|---|---|
| Delivery Time : | 2-5days | Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 8000 kilometers per month |
| Place of Origin: | Guangdong，China | Brand Name: | JQ/OEM |
|---|---|---|---|
| Certification: | CE/ISO9001 | Model Number: | GYFTZY |
|
Detail Information |
|||
| Model Number: | GYFTZY | Type: | Outdoor Fiber Optic Cable |
|---|---|---|---|
| Place Of Origin: | Guangdong, China | Number Of Conductors: | ≥ 10 |
| Fiber Type: | G652D Single Mode Or As Your Request | Length: | As Required |
| Color: | Customized | Loose Tube: | PBT |
| Jacket: | LSZH | Strength Member: | FRP |
| Package: | Wooden Drum/Customized | Application: | Aerial,Overhead |
| Oem: | Available | ||
| Highlight: | FRP fiber optic cable,LSZH fiber optic cable |
||
Product Description
Product Description

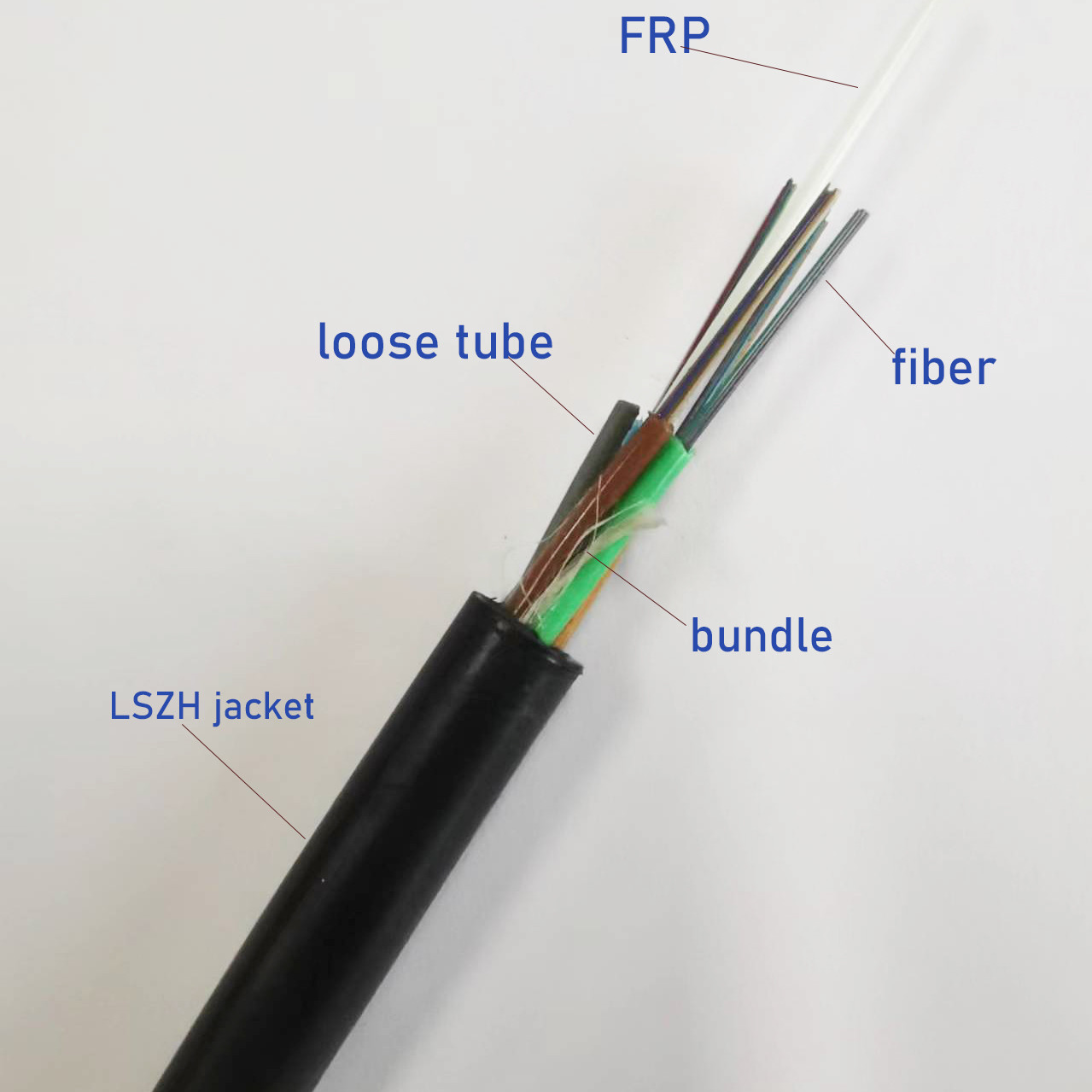

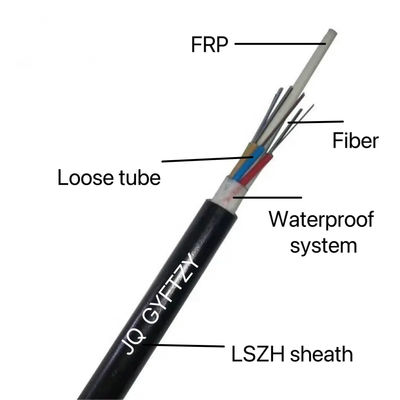

The structure of GYFTY is to sheath 250μm fiber into a high modulus loose tube (PBT). The tubes are filled with a water resistance filling compound. A fiber reinforced polymer wire (FPR), sometimes sheathed with polyethylene (PE) for high fiber count cable, locates in the center of cable as a strength member. PBT tubes (and fillers) are stranded around the strength member into acompact and round shape. The gap between the tubes is filled with water blocking compounds. Then the cable is completed with a PE heath. The material of the jacket is LSZH.
Characteristics:
■ Good mechanical properties and temperature characteristics.
■ The loose tube material itself has good hydrolysis resistance and high strength.
■ The tube is filled with special oil paste to protect the optical fiber.
■ Good compression resistance and flexibility.
■ Fire retardant,anti-strong electromagnetic interference,lightning protection.
The following measures are used to ensure water resistance of GYFTY non-armoured cable:
Single non-metal core reinforcement. The loose tube is filled with special waterproof compound. Complete cable core filling.
| item | value |
| Model Number | GYFTZY |
| Type | Outdoor Fiber Optic Cable |
| Place of Origin | Guangdong,China |
| Brand Name | jiqian |
| Cable Structure | Multi-Loose Tube None Armor |
| Number of Conductors | ≥ 10 |
| Fiber count | 2-288 Cores |
| Fiber Type | G652D Single mode or as your request |
| Central strength member | FRP |
| Loose tube | Jelly filled |
| Jacket Sheath | LSZH |
| Color | Black or as your need |
| Package | Plywood Reel/customized |
| Installation | aerial, in duct |
| operating temperature | -40 to +70 |
| Certification | CE/ROHS/ISO9001 /ANATEL |
| G.655 | 50/125μm | 62.5/125μm | ||
| G.652 | ||||
| Attenuation | '@850nm | ≤3.0 dB/km | ||
| (+20℃) | '@1300nm | ≤1.0 dB/km | ||
| '@1310nm | ≤0.34 dB/km | ≤0.40 dB/km | ||
| '@1550nm | ≤0.21 dB/km | ≤0.23 dB/km | ||
| '@850nm | ≥500 MHz·km | |||
| '@1300nm | ≥1000 MHz·km | |||
| Numerical Aperture | 0.200±0.015NA | |||
| cable countr | out sheath diameter | Weight | Minimum allowable Tensile strength(N) | Minimum | Min bending radius(MM) | |||
| (MM) | (KG) | allowable Crush load(N/100mm) | ||||||
| Short term | Long term | Short term | long Term | short term | long Term | |||
| 2-36 | 12.8 | 170 | 3000 | 1000 | 3000 | 1000 | 20D | 10D |
| 38-72 | 14.2 | 212 | 3000 | 1000 | 3000 | 1000 | 20D | 10D |
| 74-96 | 15.7 | 245 | 3000 | 1000 | 3000 | 1000 | 20D | 10D |
| 98-120 | 17.3 | 289 | 3000 | 1000 | 3000 | 1000 | 20D | 10D |
| 122-144 | 18.8 | 328 | 3000 | 1000 | 3000 | 1000 | 20D | 10D |
