Factory Price 2/4/6/8/12/16/24 Core Telecommunication GYXTW Outdoor Communication Cable Single Mode Fiber Optic Cable Wi
Factory Price 2/4/6/8/12/16/24 Core Telecommunication GYXTW Outdoor Communication Cable Single Mode Fiber Optic Cable Wi Factory Price 2/4/6/8/12/16/24 Core Telecommunication GYXTW Outdoor Communication Cable Single Mode Fiber Optic Cable Wi Factory Price 2/4/6/8/12/16/24 Core Telecommunication GYXTW Outdoor Communication Cable Single Mode Fiber Optic Cable Wi Factory Price 2/4/6/8/12/16/24 Core Telecommunication GYXTW Outdoor Communication Cable Single Mode Fiber Optic Cable Wi Factory Price 2/4/6/8/12/16/24 Core Telecommunication GYXTW Outdoor Communication Cable Single Mode Fiber Optic Cable Wi
Contact Now

Factory Price 2/4/6/8/12/16/24 Core Telecommunication GYXTW Outdoor Communication Cable Single Mode Fiber Optic Cable Wi

Minimum Order Quantity : 1km Price : 60-200USD/KM
Packaging Details : wooden drum Delivery Time : 3-5 days, it depends on your quantity
Payment Terms : L/C, D/A, T/T, Western Union Supply Ability : 60000KM/month
Place of Origin: Guangdong,China Brand Name: Jiqian
Certification: CE/ISO9001 Model Number: GYXTW

Detail Information
Fiber Type: G652D,single Mode Or Multi Mode Number Of Conductors: ≥ 10
Type: Outdoor Optical Cable Aerial Fiber Count: 2-288 Core
Color: Black
Highlight:

24 core Outdoor Fiber Optic Cable

,

GYXTW Outdoor Fiber Optic Cable

,

Single Mode Outdoor Fiber Optic Cable

Product Description

Products Description

Product Details

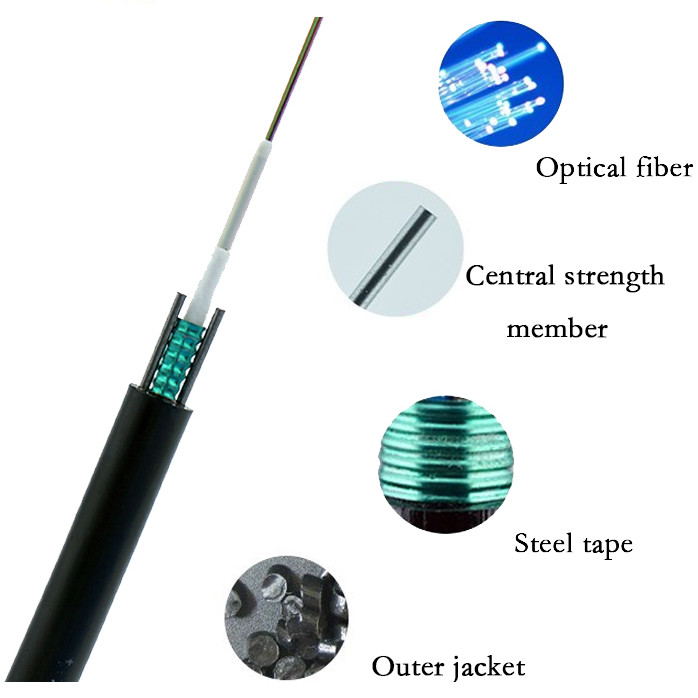

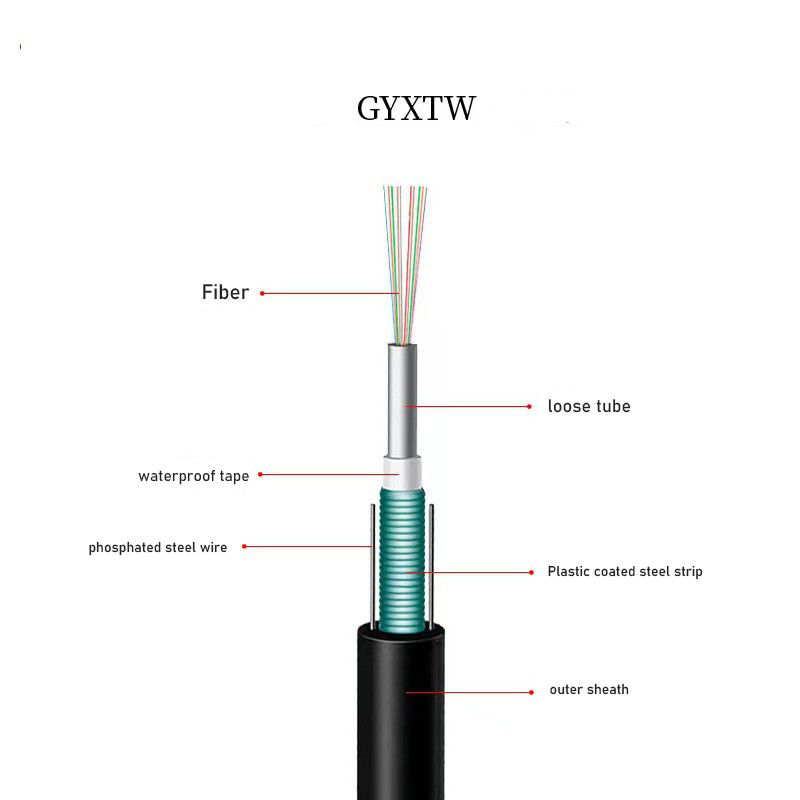

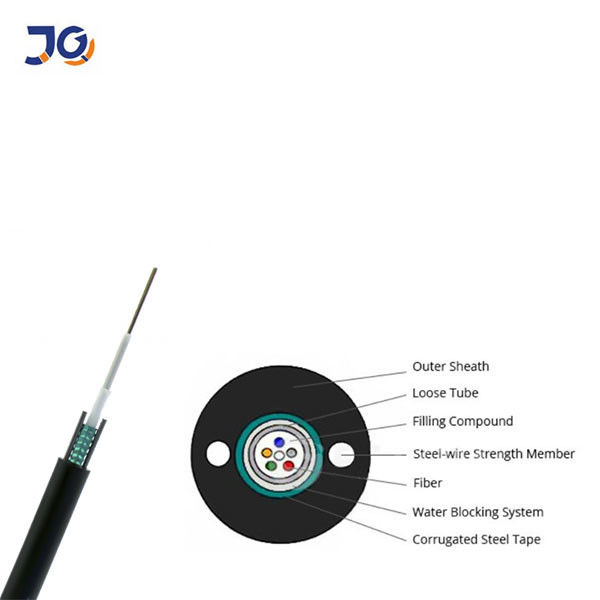

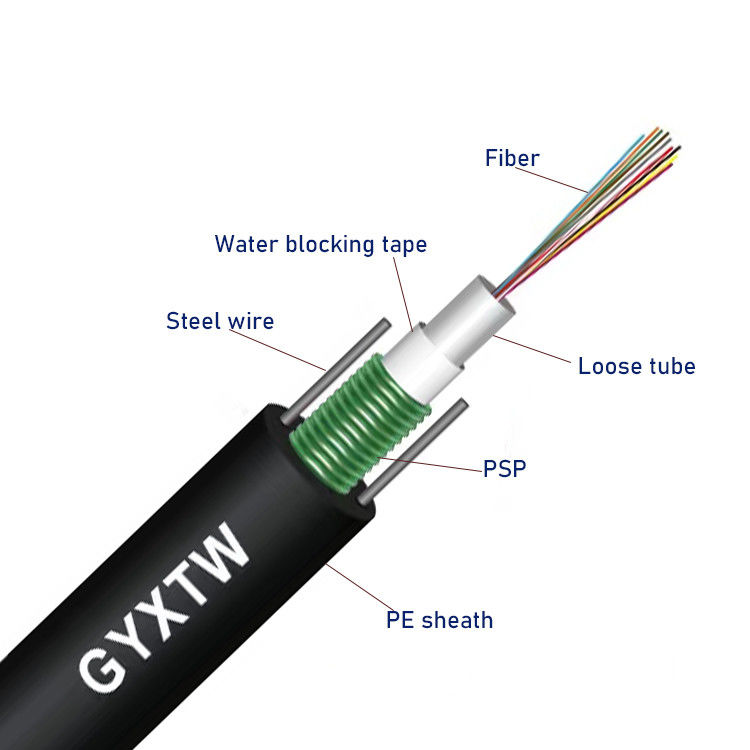

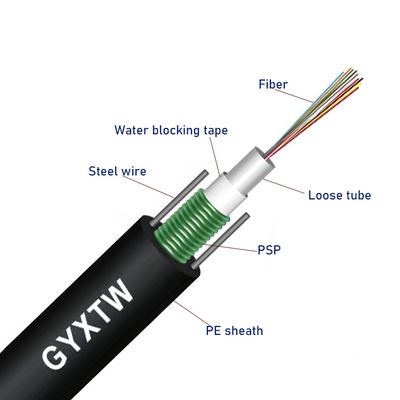

The center of the central tube type optical cable is a loose tube, and the outer part of the loose tube is longitudinally wrapped with plastic coated steel tape. Place two parallel steel wires on both sides of the steel strip to ensure tensile strength. The reinforcing components are located around the loose tube, and waterproof materials are filled between the PSP and the loose tube to ensure the compactness and waterproofing of the cable.Factory Price 2/4/6/8/12/16/24 Core Telecommunication GYXTW Outdoor Communication Cable Single Mode Fiber Optic Cable Wi 0Factory Price 2/4/6/8/12/16/24 Core Telecommunication GYXTW Outdoor Communication Cable Single Mode Fiber Optic Cable Wi 1Factory Price 2/4/6/8/12/16/24 Core Telecommunication GYXTW Outdoor Communication Cable Single Mode Fiber Optic Cable Wi 2
Cable structure and parameter
Model Number
GYXTW
Fiber count
2-12 Cores
Fiber Type
G652D or as your need
Structure
Central Tube
Jacket material
PE
Certification
CE/ROHS/ISO9001
Strength member
Steel Wire
Application
Aerial
1310nm
≤0.34dB
1550nm
≤0.21dB
Package
Wooden Reel
Operating environment:
- 40 ~ 60 ℃

Fiber color code

Fiber color in each tube starts from No. 1 Blue.
NO.
1
2
3
4
5
6
Color
Blue
Orange
Green
Blown
Gray
White
NO.
7
8
9
10
11
12
Color
Red
Black
Yellow
Purple
Pink
Aqua



Characteristics

■ Small diameter, light weight, flexible structure. ■ Metal reinforcement, oil paste filling, steel tape armouring, loose nesting layer. ■ Single tube gel filled structure provides excellent fiber protection. ■ Two parallel steel wires ensure tensile strength. ■ Excellent mechanical and high temperature resistance. ■ Excellent water and moisture resistance ■ Excellent resistance to ultraviolet radiation ■ Suitable for various construction environments, and has good environmental performance.

Application

1. Suitable for outdoor distribution. 2. Suitable for overhead and pipeline laying methods. 3. Long-distance and LAN communication.

Company ProfileFactory Price 2/4/6/8/12/16/24 Core Telecommunication GYXTW Outdoor Communication Cable Single Mode Fiber Optic Cable Wi 3



FAQ
1.MOQ: what is your minimum quantity?
-MOQ : 1KM

2.Can I get a sample?
-Yes, we provide FREE sample and you just need to pay for express freight.

3.Accept OEM or ODM?
-Yes,we're manufacturer. And we have our own Engineering Department. You just need to tell us your requirements.

4.What is your delivery time?
-The general delivery time is 3-7 days after order confirmed. It depends on the order quantity.

5.Payment?
-L/C,T/T,Western Union and Paypal are acceptable.

6.What is the shipping method?
-It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and ect).Please confirm with us before placing orders.
