Customized GYXTW Armored 2 4 6 8 12 24 Core Single Mode Fiber Optic Cable 6mm 7mm 8mm With Messenger
Contact Person : JQ CABLE
Phone Number : +8618122383351
whatsapp : +8618122383351
| Minimum Order Quantity : | 1 Kilometer | Packaging Details : | Wooden Drum |
|---|---|---|---|
| Delivery Time : | 2-5days | Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 8000 kilometers per month |
| Place of Origin: | Guangdong，China | Brand Name: | JQ |
|---|---|---|---|
| Certification: | CE/ISO9001 | Model Number: | GYTA |
|
Detail Information |
|||
| Type: | Outdoor Fiber Optic Cable | Place Of Origin: | Guangdong, China |
|---|---|---|---|
| Fiber Type: | G652D/G657A1/G657A2 | Fiber Count: | 48 Cores |
| Length: | Customized | Color: | Customized |
| Tube: | Multi-Loose Tube | Central Strength Member: | Steel Wire |
| Armoured: | Al Tape | Outer Sheath: | PE Or As Your Request |
| Package: | Wooden Drum/Customized | Application: | Aerial,Overhead |
| Oem: | Available | Operating Temperature: | -40°C~+70°C |
| Certificate: | ISO9001/CE/ROHS | ||
| Highlight: | 144 Core Fiber Optic Cable,72 Core Fiber Optic Cable,96 Core Fiber Optic Cable |
||
Product Description
GYTA fiber optic cable is used for duct or aerial applications.

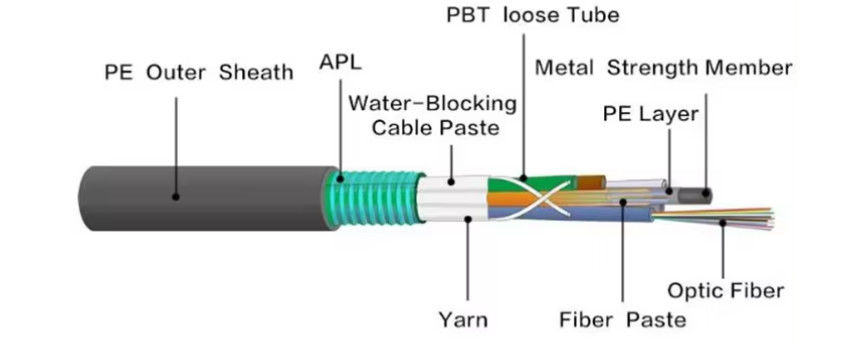

These aluminum tape armored cables are suitable for installation for long haul communication and LANs, especially suitable for the situation of high requirements of moisture resistance.It is the stranded loose tube fiber optic cable with compact structure; the cable jacket is made of strong Polyethylene; Highstrength loose tube that is hydrolysis resistant; Cable filling materials ensure high reliability; APL makes the cable crush
resistant and moisture proof. So, the GYTA has a very good watertight performance.
Good machanical and temperature performance.High strength loose tube that is hydrolysis resistant.
Special tube filling compound ensure a critical protection of fiber.
Specially designed compact structure is good at preventing loose tube from shrinking.
PE sheath protects cable from ultraviolet radiation
The following used as the central strength member.
Loose tube filling compound.
100% cable core filling.
APL moisture barrier.
Application:
•Interbuilding voice or data communication backbone.
•Installed in duct, underground conduit.
Specification:
| item | value |
| Model Number | GYTA |
| Type | Outdoor Fiber Optic Cable |
| Place of Origin | Guangdong,China |
| Brand Name | jiqian |
| Number of Conductors | ≥ 10 |
| Fiber count | 2-288 Cores |
| Fiber Type | G652D Single mode or as your request |
| Loose tube material | PBT |
| Central strength member | steel wire |
| Armoured | Al tape |
| Outer Sheath | PE |
| Cable Structure | Multi-Loose Tube Aluminum/Steel Tape armor |
| Color | Black or as your need |
| Package | Fumigation free wooden drum |
| Installation | aerial, in duct |
| Certification | CE/ROHS/ISO9001 /ANATEL |
| OEM | Available |

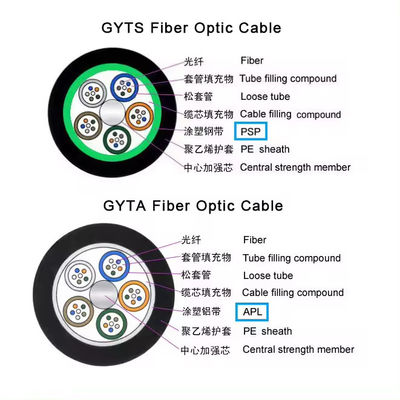

Structure and Technical Specifications:
| Fiber | Nominal | Nominal | Max Fiber | Max No. | Allowable Tensile | Allowable Crush | ||
| Count | Diameter | Weight | Per Tube | of(Tubes+ | Load(N) | Resistance(N/100mm) | ||
| (mm) | (kg/km) | fillers) | Short Term | Long Term | Short Term | Long Term | ||
| 2~36 | 10.3 | 109 | 6 | 6 | 1500 | 600 | 1000 | 300 |
| 38~72 | 11.5 | 145 | 12 | 6 | 1500 | 600 | 1000 | 300 |
| 74~96 | 13.5 | 175 | 12 | 8 | 1500 | 600 | 1000 | 300 |
| 98~120 | 14.8 | 209 | 12 | 10 | 1700 | 600 | 1000 | 300 |
| 122~144 | 16.6 | 249 | 12 | 12 | 2000 | 600 | 1000 | 300 |
| 146~216 | 16.7 | 254 | 12 | 18(2 layers) | 2000 | 600 | 1000 | 300 |
| 218~288 | 19 | 325 | 12 | 24(2 layers) | 2500 | 600 | 1000 | 300 |
Delivery:
For large orders: by sea (LCL or FCL)
For small orders: by sea (LCL), by air or by courier services(DHL ,UPS,TNT.....)
Packaging Details:
Wooden roll, 1000m/reel, 2000m/reel, 3000m/reel, customer's requirements are also welcomed.
WHY CHOOSE US:
Certification:
FAQ:
1. Are you the real manufacturer?
Yes, we are factory in Guangzhou china, welcome to visit us!
2. what is your minimum quantity?
1KM. We support new project of our customers, trial order is available
3.Can I get a sample?
Yes, we provide FREE sample and you just need to pay for express freight.
4.What about Payment?
T/T, L/C, Western Union and Paypal are acceptable.
5.Delivery time?
Generally 3-7 working days, also it is according to qty.
6.Can you supply customized products and logo?
Yes, we supply OEM&ODM service, pls feel free to contact.
7.what can you buy from us?
Fiber optic cable,FTTH fiber cable,Patch cord,FC/SC/FC-SC Adapter,Media converter
8. why should you buy from us not from other suppliers?
Customer First ,Credit First ,Quality First,Service First .
9. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,Express Delivery；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,PayPal,Western Union,Cash,Escrow;
