Single Jacket ADSS Fiber Optic Cable 80m 100m 120m Span
Contact Person : JQ CABLE
Phone Number : +8618122383351
whatsapp : +8618122383351
| Minimum Order Quantity : | 10km | Price : | base on fiber specifications |
|---|---|---|---|
| Packaging Details : | Wooden reel | Delivery Time : | about 11 working days |
| Payment Terms : | T/T, Western Union,Alipay | Supply Ability : | 1000KM per day |
| Place of Origin: | China guangdong | Brand Name: | JQ |
|---|---|---|---|
| Certification: | ISO9001 CE ROHS FCC | Model Number: | ARSS-4/12/24/48F |
|
Detail Information |
|||
| Application: | Overhead/aerail | Fiber Counts: | 4/8/12/24/36/48/72/96/144c |
|---|---|---|---|
| Span: | 80/100/200/300/500M | Fiber Per Tube: | 4/6/8/12F |
| OEM: | Avalible | Strength Number: | FRP |
| Structure: | Stranded Loose Tube With Filler (if Needed) | Jacket Color: | Black/red/blue |
| Operating Temperature: | -40℃ To +60℃ | Armor: | Steel Tape |
| Highlight: | 48 Cores ADSS Fiber Optic Cable,96 Cores ADSS Fiber Optic Cable |
||
Product Description
anti-rodent ARSS fiber cable
what is a ARSS fiber optic cable
Features

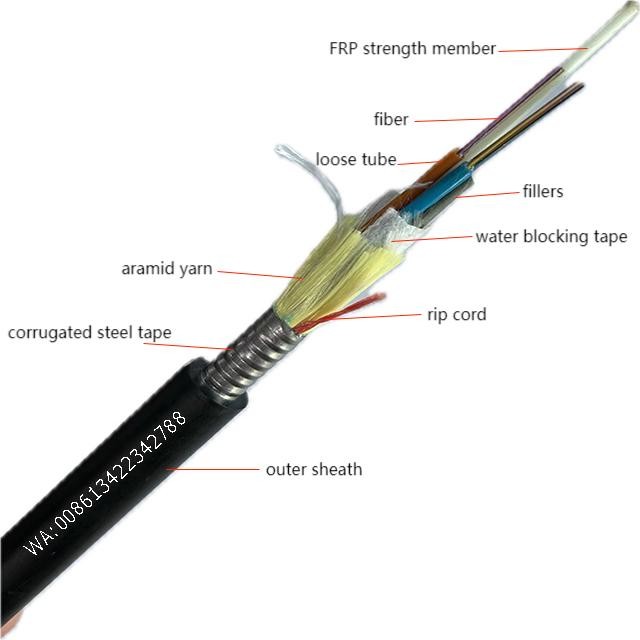

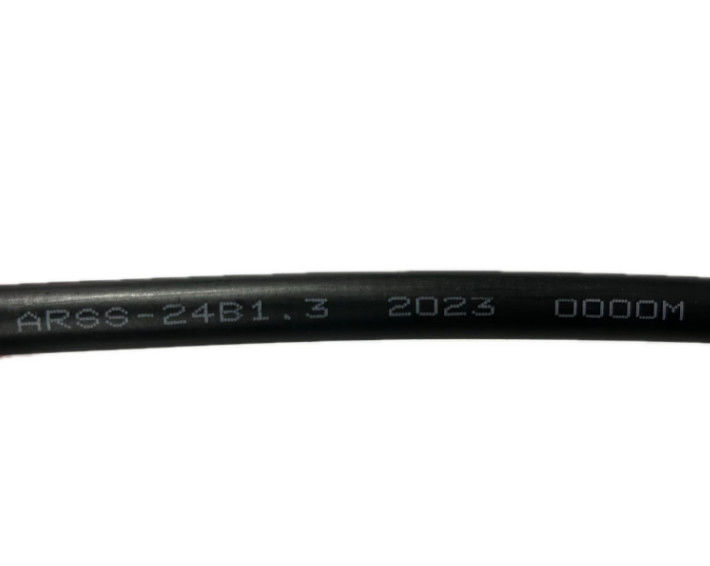

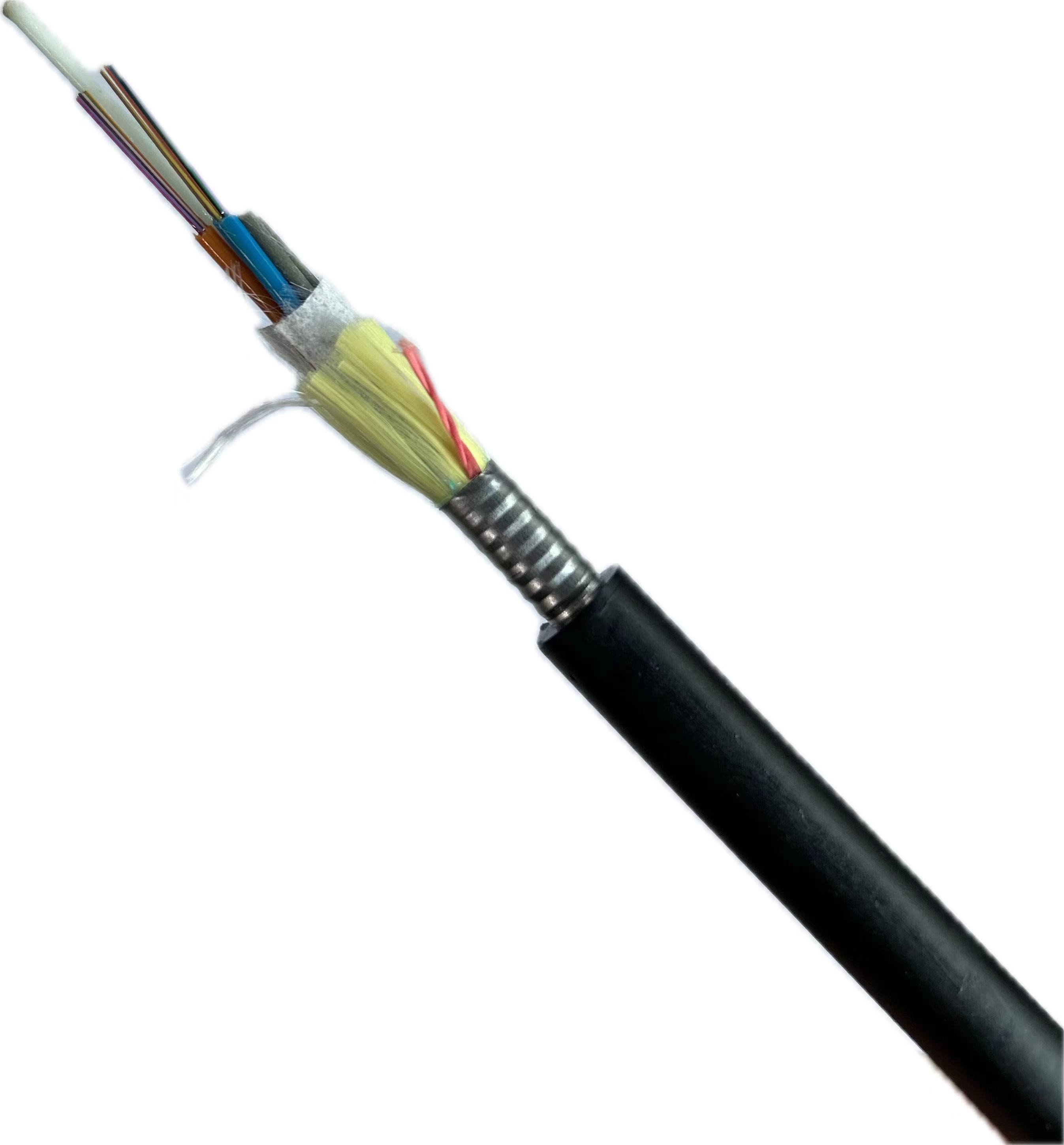

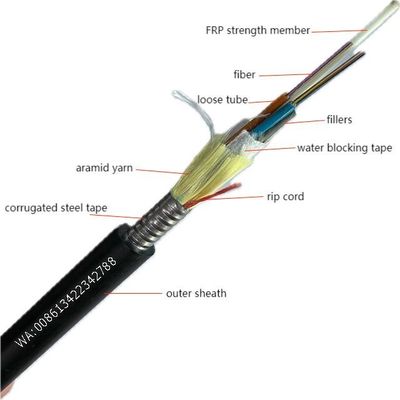

Details picture shows

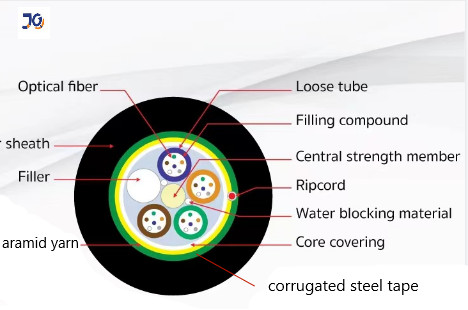

Structure and Technical Specifications
| fiber count | structure | fiber per tube |
losse tube diameter (MM) |
FRP/pad diameter (mm) | Thickness of outer jacket(mm) | Ref. Outer Diameter (mm) |
Ref. Weight (kg/km) |
|
| PE Jacket | AT Jacket | |||||||
| 4 | 1+6 | 4 | 1.9 | 2.0/2.0 | 1.7±0.1 | 9.8±0.2 | 83 | 93 |
| 6 | 1+6 | 6 | 1.9 | 2.0/2.0 | 1.7±0.1 | 9.8±0.2 | 83 | 93 |
| 8 | 1+6 | 4 | 1.9 | 2.0/2.0 | 1.7±0.1 | 9.8±0.2 | 83 | 93 |
| 12 | 1+6 | 6 | 1.9 | 2.0/2.0 | 1.7±0.1 | 9.8±0.2 | 83 | 93 |
| 24 | 1+6 | 6 | 2.0 | 2.0/2.0 | 1.7±0.1 | 9.8±0.2 | 86 | 96 |
| 48 | 1+6 | 12 | 2.0 | 2.0/2.0 | 1.7±0.1 | 10.0±0.2 | 89 | 99 |
| 72 | 1+6 | 12 | 2.2 | 2.0/2.0 | 1.7±0.1 | 10.5±0.2 | 99 | 109 |
| 96 | 1+8 | 12 | 2.2 | 2.0/3.4 | 1.7±0.1 | 12.0±0.2 | 124 | 136 |
| 144 | 1+12 | 12 | 2.2 | 3.0/7.2 | 1.7±0.1 | 15.2±0.2 | 176 | 189 |
Tips: all the specifications in the abolve table is approximate data, for more detals specifications,
pls contact our salers.
|
Fiber type |
Attenuation (+20℃) |
Bandwidth |
Optical cable cut-off wavelength |
||||
|---|---|---|---|---|---|---|---|
|
@850nm |
@1300nm |
@1310nm |
@1550nm |
@850nm |
@1300nm |
||
| G.652 | --- | --- | ≤0.36dB/km | ≤0.22dB/km | --- | --- | ≤1260nm |
| G.655 | --- | --- | ≤0.40dB/km | ≤0.23dB/km | --- | --- | ≤1450nm |
| 50/125µm | ≤3.3dB/km | ≤1.2dB/km | --- | --- | ≥500MHz·km | ≥500MHz·km | --- |
| 62.5/125µm | ≤3.5dB/km | ≤1.2dB/km | --- | --- | ≥200MHz·km | ≥500MHz·km | --- |
Application: Self-supporting overhead

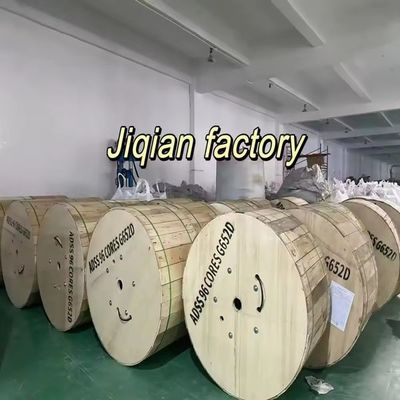

Packing:
FAQ
1. Q:Are you a factory or trade company?
A: We are a factory
2. Q:What is the MOQ?
A: The MOQ of Fiber Optic cable is 15km.
3. Q:Which brand of fiber do you use?
A:YOFC,Fiberhome,CORNING ,etc
4. Q:Can you accept small order?
A: Yes, small order is available .We support new project of our customers as we know business is always from small order.
5. Q:What’s delivery time?
A: The general delivery time is 10 days after order confirmed. It depends on the order quantity.
6. Can you supply customized products and logo?
A:Yes. We supply OEM service.
7. what is your payment terms?
A: We accept T/T,L/C,Western Union, 30% Deposit and 70% before shipment.
