Outdoor Overhead Optical Fiber Figure 8 Apl Armored Cable Gyfty
Outdoor Overhead Optical Fiber Figure 8 Apl Armored Cable Gyfty
Outdoor Overhead Optical Fiber Figure 8 Apl Armored Cable Gyfty Outdoor Overhead Optical Fiber Figure 8 Apl Armored Cable Gyfty Outdoor Overhead Optical Fiber Figure 8 Apl Armored Cable Gyfty Outdoor Overhead Optical Fiber Figure 8 Apl Armored Cable Gyfty
Contact Now

Outdoor Overhead Optical Fiber Figure 8 Apl Armored Cable Gyfty

Minimum Order Quantity : 3KM Packaging Details : iron drum
Delivery Time : 5 days Payment Terms : L/C, T/T, Western Union
Supply Ability : 200KM Per day
Place of Origin: CHINA Brand Name: JQ
Certification: ISO9001/CE/RoHS Model Number: gyfty

Detail Information
Highlight:

outdoor overhead optical fiber cable

,

gyfty outdoor overhead optical fiber cable

Product Description

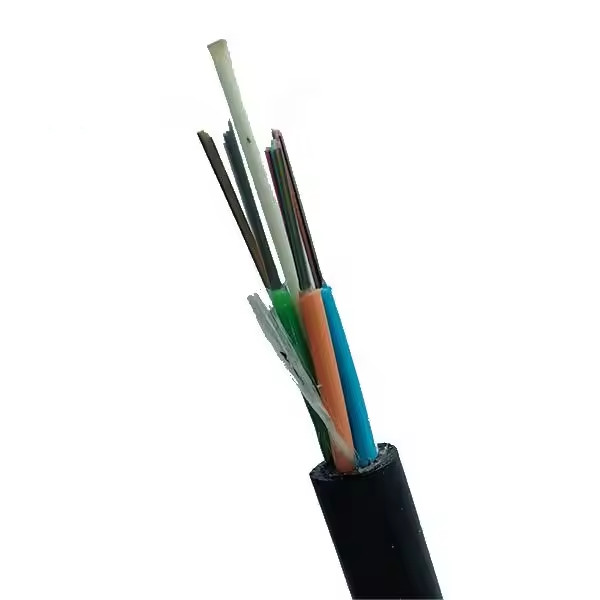

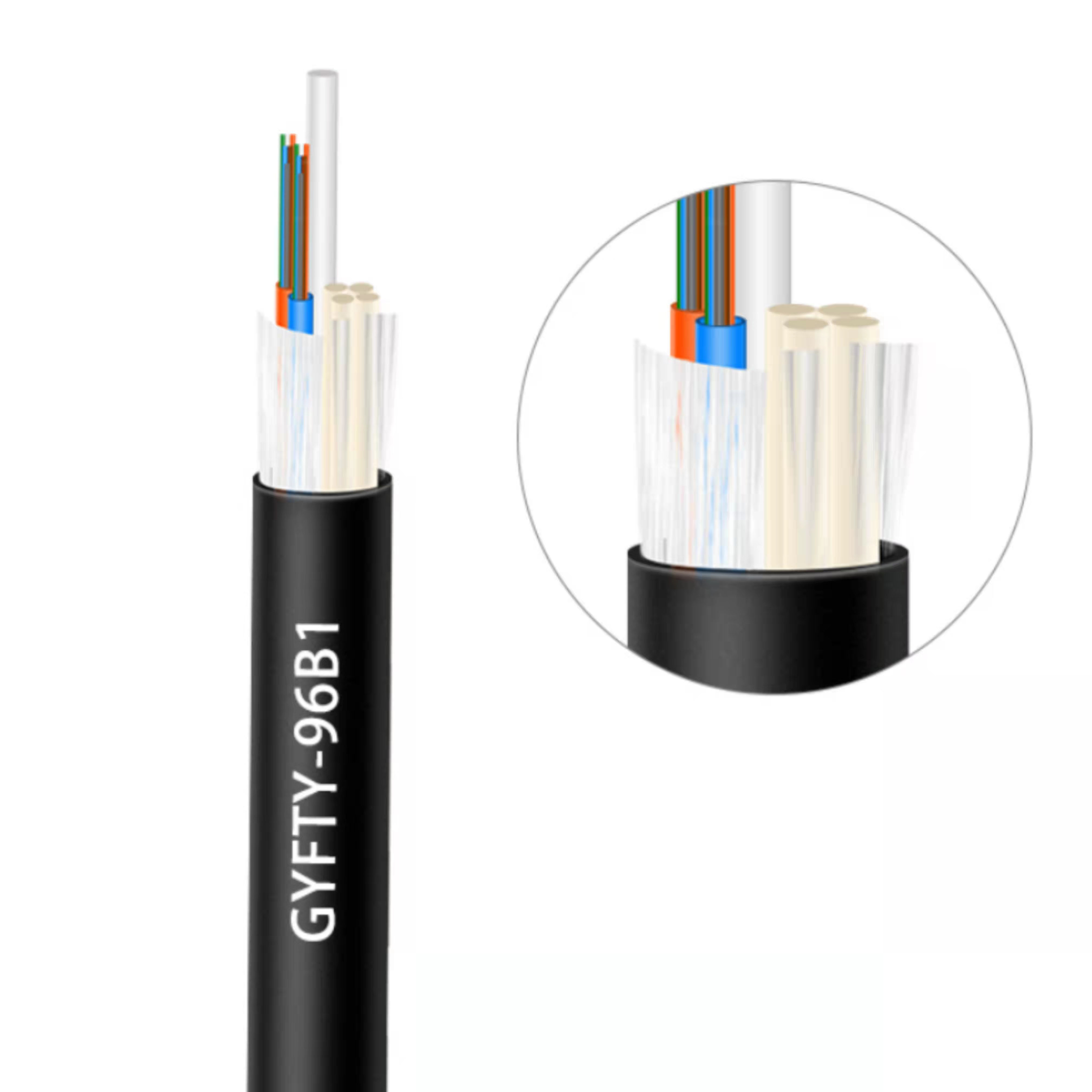

Outdoor Overhead Optical Fiber Figure 8 Apl Armored Cable Gyfty 0

1.Central Strength Member (CSM): glass fiber reinforced plastic rod (FRP), with PE sheath covering when needed.


2.Buffer Tube: PBT plastic material, containing 6 fibers and filled with a suitable water tightness compound.

3.Filler Elements: nature PP plastic rods, when needed.

4.Stranding: loose tubes (and fillers), SZ stranded around the CSM.

5.Longitudinal Water Tightness: dry core with water swellable elements.

6.Glass yarns: anti-rodent

7.Ripcord(s): 1 polyester ripcord under sheath.

8.Outer Sheath: PE

Fiber Parameter
Item
Unit
Specification
Fiber Type
G.652D

Mode field diameter
1310nm
μm
9.2±0.4
1550nm
μm
10.4±0.8
Cladding diameter
μm
125.0±1
Cladding non-circularity
%
≤1.0
Core/cladding concentricity error
μm
≤0.5
Coating diameter
μm
245±5
Coating non-Circularity
%
≤6.0
Coating/cladding concentricity error
μm
≤12.0
Cable cut-off wavelength
nm
≤1260

Attenuation Coefficient
1310nm
dB/km
≤0.36
1550nm
dB/km
≤0.22
Proof stress level
kpsi
≥100

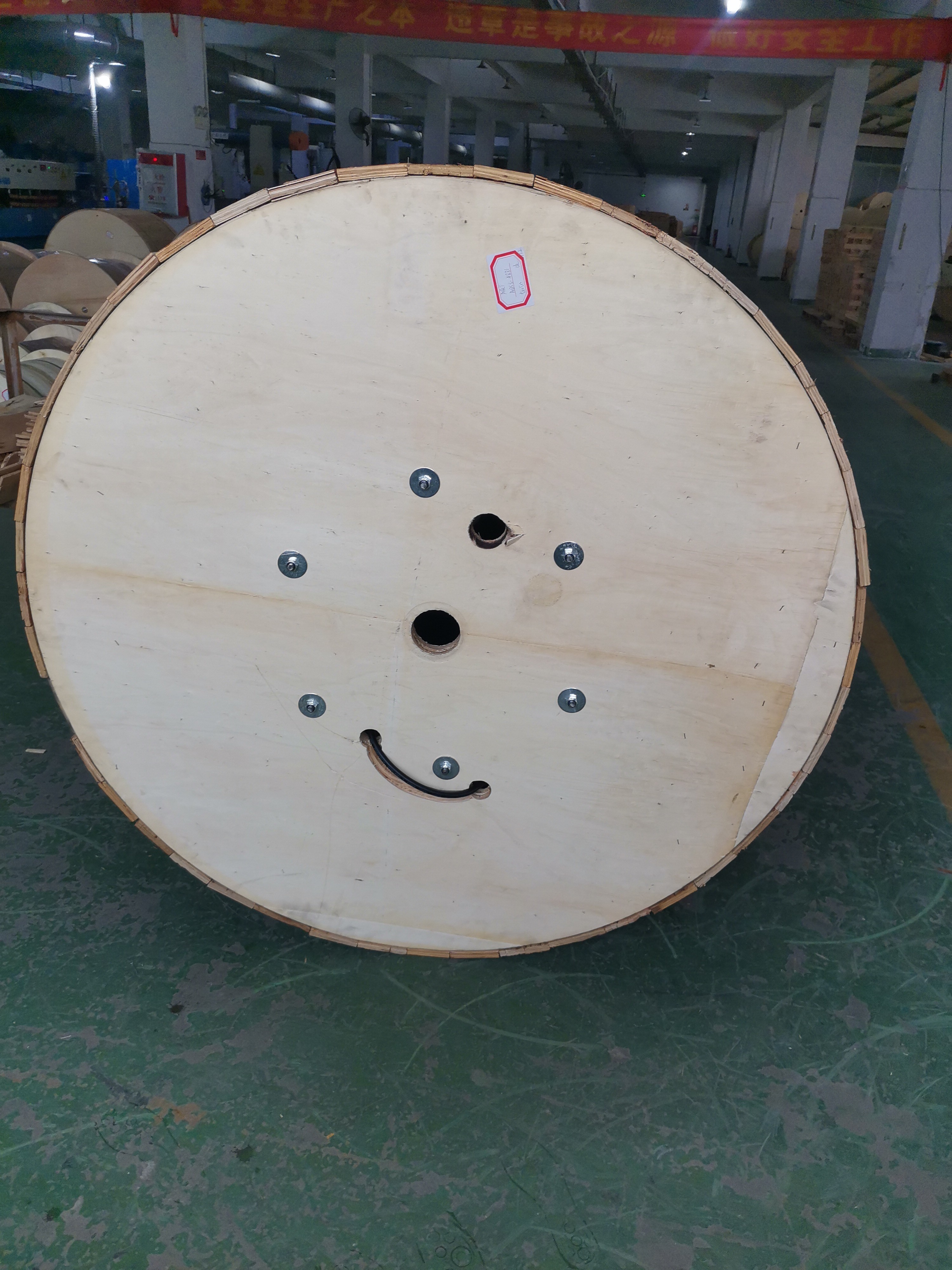

Packing & Delivery
Outdoor Overhead Optical Fiber Figure 8 Apl Armored Cable Gyfty 1
Outdoor Overhead Optical Fiber Figure 8 Apl Armored Cable Gyfty 2
Lead time
Order quantity(km)
1-100
Above 100
Earliest time(day)
7
Negotiable
